Key Takeaways
- Understanding the complexities of paint production lines helps you find the best supplier. Various industrial painting lines, including automated and hand paint line systems, serve different production requirements and efficiency standards.
- Without dependable feeding systems, paint production lines can’t maintain the uniformity and quality of paint production. Whether they are vacuum, manual, or pump-based, each one has its importance for the process. Each system presents distinct benefits and operational characteristics that must be weighed according to production needs.
- Wet-grinders and pre-mixers are critical systems in the paint production process. They also make sure that many ingredients are well-blended and finely ground, resulting in a much smoother and more consistent finished product.
- Filtering and filling systems are an important part of keeping the paint line’s quality paint quality. They assist in eliminating contaminants and precisely filling paints into jars, ensuring optimal product quality and consumer happiness.
- Paint production lines for emulsion, decorative paint and automotive paints are highly specialized processes that demand very different workflows and technologies. Gaining a better understanding of these processes can improve the short- and long-term tailorability and performance of paint formulations.
- Well-planned plant engineering and design is the key to a smooth-running paint production line. This goes beyond consultancy to cover scheme design, equipment selection and maintenance support. It’s the key to productive operations and longterm use of your production line.
We know that navigating paint production lines can be intimidating. From industrial coating production lines to explosion-proof production lines, the choices are plentiful. Whether you’re an industrial or commercial professional, knowing the ins and outs of these systems is incredibly important.
Production lines for plastics, metals, and wood have specialized lines that meet specific needs. Understanding the distinctions between water-based and oil-based lines is essential. A trustworthy supplier translates to an efficient production line.
This guide brings that all down to the fundamentals, providing valuable information to help you make smart decisions and optimize your operation. Join us as we explore paint production line supplier.

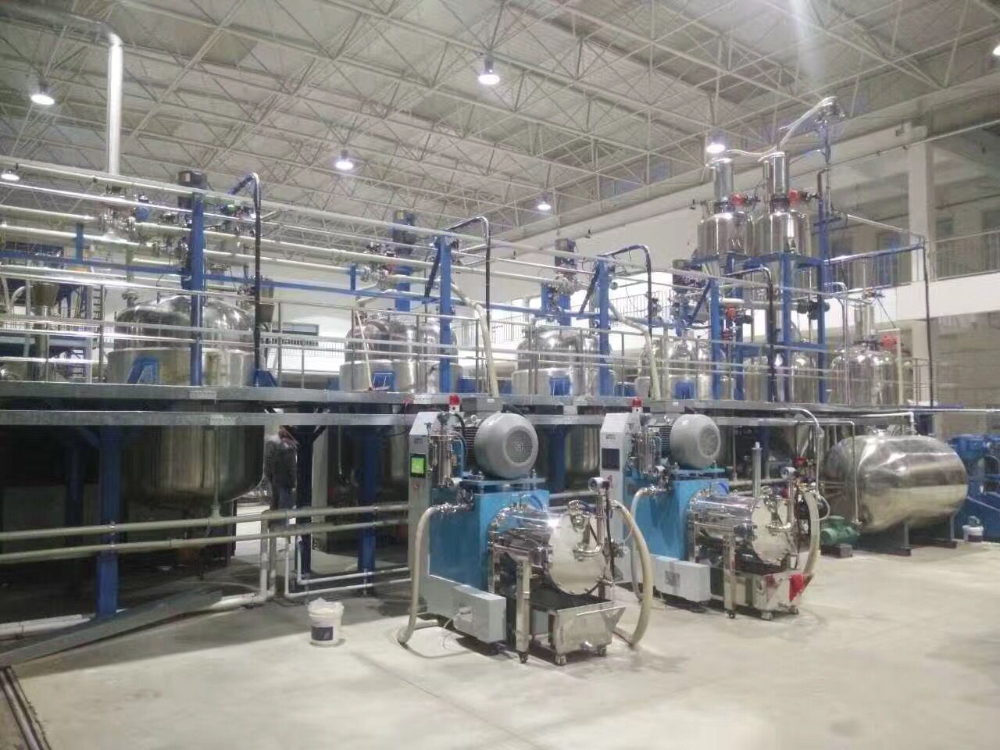

Understanding Paint Production Lines
To make durable, vibrant, high-quality paint, you need a highly automated production line. Paint production lines are complex industrial systems that are expected to manage everything from the mixing of raw materials to the packaging of the final product.
These production lines are made up of several stages, such as mixing, grinding, tinting, and filling. Every step requires meticulous attention and control to guarantee uniformity and excellence. By way of example, paint viscosity can reach 4,343 psi.
This increased viscosity results in acute handling issues as compared to paint of lower viscosities. These systems need the ability to carry such viscous materials without losing the performance.
What Are Paint Production Lines?
Paint production lines are essentially a series of connected processes that convert raw materials into the finished paint products you see on store shelves. These lines consist of a wide array of specialized machines, equipment, mixers, grinders, dispersers, filling machines, etc.
Every single ingredient is incredibly important to ensuring the finished paint has the right physical and aesthetic characteristics, like color consistency and surface finish. Filtration systems are essential to paint production lines to maintain a clean and safe workspace.
They can even help control VOCs by capturing overspray paint particles and solvent vapors. Proper ventilation and filtration are key to protecting air quality. They eliminate dust, fumes, and VOCs, which are critical to maintaining an environmentally compliant operation while helping to protect worker safety.
Types of Painting Lines
There are many different painting lines available, each designed for different production requirements. Spray coating systems are one of the most popular application systems, atomizing the paint into a fine, dispersed spray to achieve a low film build on substrates.
This technique is both economical and provides excellent coverage, minimizing coating imperfections such as pinholes and craters. Powder coating lines are another example, favored for their toughness, efficient application, and reduced environmental impact.
Installation time for these decentralized plants ranges from a minimum of 8 weeks to a maximum of 18 weeks, depending on the complexity of the specific project. Powder coating equipment can run from $20k to $500k.
Paint production line investments should be thoroughly considered based on your unique requirements before manufacturers invest in this kind of equipment.
Importance of Reliable Solutions
This is why accurate and dependable solutions in paint production lines are critically important. State-of-the-art equipment and processes make sure that production is as efficient and effective as possible.
When paired with the right preparation and machinery, coating defects can be drastically reduced, resulting in a higher quality end product. Evaluating unique requirements and selecting the appropriate equipment can maximize efficiencies, leading to more successful paint production results.
Production lines equipped with sophisticated filtration systems actively prevent environmental contamination. They also play an important role in keeping a clean work environment, which is critical for end-product quality and regulatory compliance.

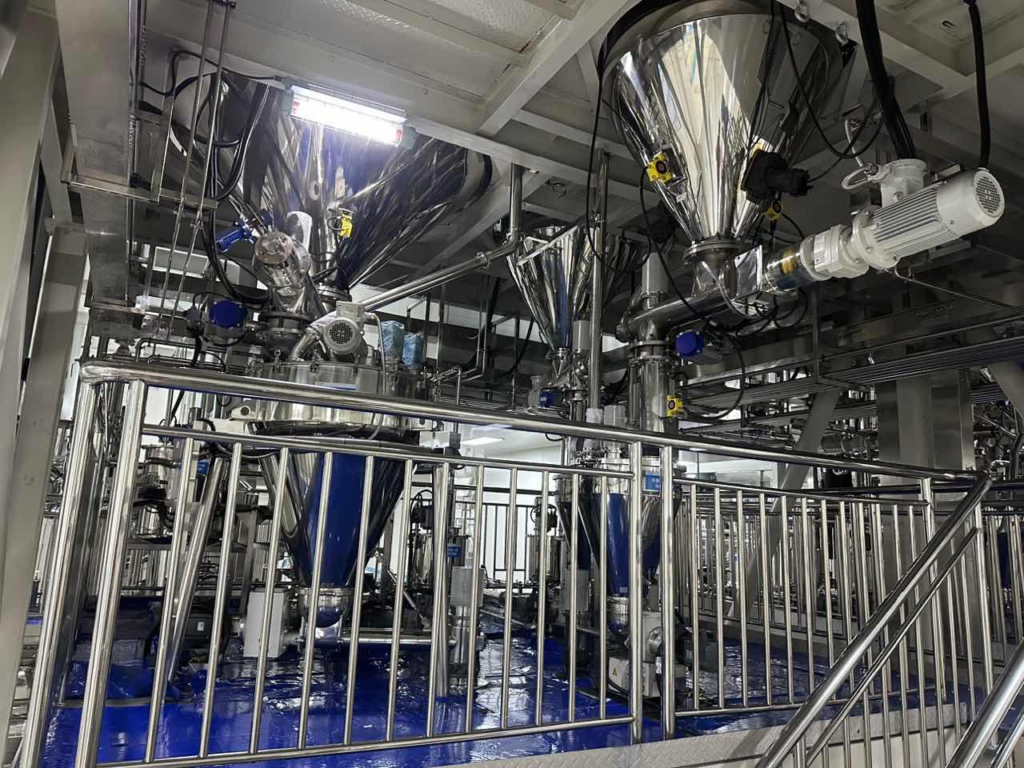

Feeding Systems in Paint Production
Having a strong grasp of feeding systems in paint production will provide a broader understanding of how various approaches can affect efficiency and quality. The choice of feeding system often depends on the specific requirements of a paint production line, the types of materials used, including emulsion paint, and the desired outcome of the finished product.
Vacuum Feeding Explained
Vacuum feeding, a high-tech method widely used in the paint production line, is a prime example of modern techniques. This includes feeding ingredients from their storage containers to the mixing vessel using a suction conveyor, which is particularly beneficial for emulsion paint and powder materials. This approach is especially useful for feeding powders and powder/granulated materials.
For the auto-feed powder systems, we see that equipment category continuing to expand as an equipment category in the coatings space. These systems utilize an easy-to-use double diaphragm pump to provide a tremendous savings in cleanup time, particularly on low-viscosity products.
Paint manufacturers are implementing a vacuum process to help produce a cleaner, more efficient operation. While necessary for these high-volume production lines, this approach can be harmful to the overall production process if not managed properly.
Rapid flow vacuum milling and dispersion technology increases productivity exponentially. It allows for quicker batch production runs, minimizes material waste, and eases changeovers. This innovation is in step with the increasing adoption of auto-feed powder systems.
In reality, industry leaders predict that 70% of coatings manufacturers will implement this technology in the next five years, marking a significant shift in the decorative paint industry.
Manual Feeding Overview
However, manual feeding, as well as semi-automated batch feeding, are still prevalent feeding methods in many small to medium-sized paint production facilities. This process requires operators to hand feed raw materials into the mixers.
Although this method provides a high degree of control and flexibility, it is also very labor-intensive and time-consuming. Manual feeding is also common for smaller batch sizes or when more precise additions of materials are required for specific formulations.
While there’s considerable manual effort involved, this process gives manufacturers the ability to quickly pivot mid-production. As one can imagine, this capability provides a tremendous quality control.
In addition, skilled operators are needed to ensure consistent and accurate results. This requirement for specialized knowledge can hinder efforts to scale up production.
Pump Feeding Basics
Pump feeding uses pumps to transport liquid ingredients into the mixing compartment. This technique is also great for transferring more viscous liquids or anytime a continuous delivery of material is required.
It’s incredibly effective for high-volume, high-scale operations where consistency and time are critical. Pump feeding systems are an efficient and effective way to enhance production while ensuring the right material is delivered in the right amount and at the right time.
They provide the additional benefit of producing less waste and lowering contamination risk. By automating the transfer of material, the entire production line becomes more efficient. Additionally, it reduces the opportunity for human error.
Vacuum Feeder Details
Vacuum feeders are a high-value, but often overlooked, component in cutting-edge paint production systems. They are also designed to work with a variety of material, even with high viscosity applications.
Hockmeyer is another major player in this industry. They have developed lab and pilot-sized units that can agitate, mix, disperse, homogenize, mill and nano-mill materials with viscosities of up to 500,000 centipoise (cps).
This integrated capability also enables the development complex, high-performance formulations to be produced with precision, consistency and high quality. Rapid recirculation under vacuum technology is equally as achievable, allowing paint manufacturers to create the mixes they need while using the least amount of energy possible.
With the versatility and efficiency provided by vacuum feeders, their inclusion in any paint production facility is a necessity.
Pre-Mixing and Wet-Grinding Systems
Creating an efficient paint production line, particularly one that incorporates automatic painting line technology, means recognizing the importance of powerful pre-mixing and wet-grinding systems. These systems enhance the quality of the final emulsion paint product while also improving operational efficiency.
Pre-Mixing System Functions
During the first stage of paint manufacture, the pre-mixing and wet-grinding systems are critical for the uniformity of the raw materials. This stage acts as an important juncture where pigments, solvents and other additives are mixed together to create a uniform mixture.
The Pre-mixing and Wet-grinding System is uniquely designed to handle high volumes. To obtain optimal results, we advise filling approximately 80% of the cylinder volume. This provides a uniform mixture of ingredients with a solid foundation for the next steps in the process.
As an example, with high-viscosity materials, the use of a pre-mixing system can cut the homogenization time by as much as 70 percent. The efficiency of this pre-mixing and wet-grinding system provides the seamless transition into the grinding phase, reducing downtime and improving productivity.
The pre-mixing stage is critical for avoiding clumping. It helps to make sure that the raw materials are evenly dispersed before entering the wet-grinding system.

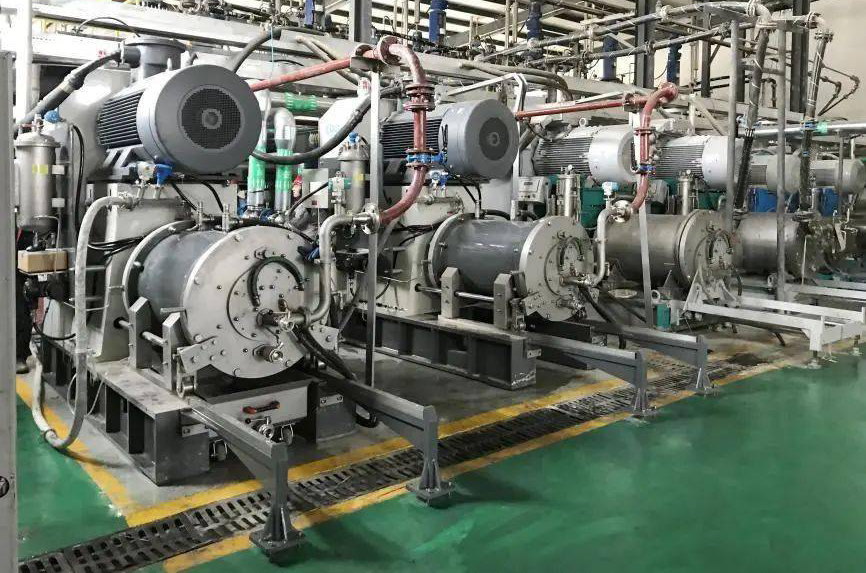

Wet-Grinding System Role
This wet-grinding system is key to producing the required particle size and dispersion quality needed for many markets. The ELE basket mill model represents some of the best and most exciting innovations in this area.
It enables a bead loading ratio of up to 70%-75% without the risks of bead leakage or motor overload. This model incorporates 0.6-millimeter beads for fine wet-grinding. At the same time, it also proves its mettle executing a 700-nanometer grind on color pastes, an impressive feat that showcases its fine dispersion capabilities.
The ELE basket mill has a patented design that provides the ultimate solution to bead leakage. In addition, it comes equipped with a one-way inlet device designed to keep beads safely in place.
This unique design feature prevents the beads from leaking out of the system while running, providing a safer, more efficient system. Customers can turn to the pre-mixing and wet-grinding systems to perform test grindings at the manufacturer’s lab.
This enables them to accumulate fact-based information to make educated model choices before purchase. Operating manuals and installation videos are available in both English and Chinese for full support of the ELE basket mill.
This user-friendly design means that users are able to easily and intuitively operate and maintain the equipment. To guarantee operational continuity, the model is also equipped with a solid three-year spare parts stock.
Additionally, we company a 12-month warranty period, replacing any broken components at no cost, which reduces downtime and helps maintain consistent production cycles.

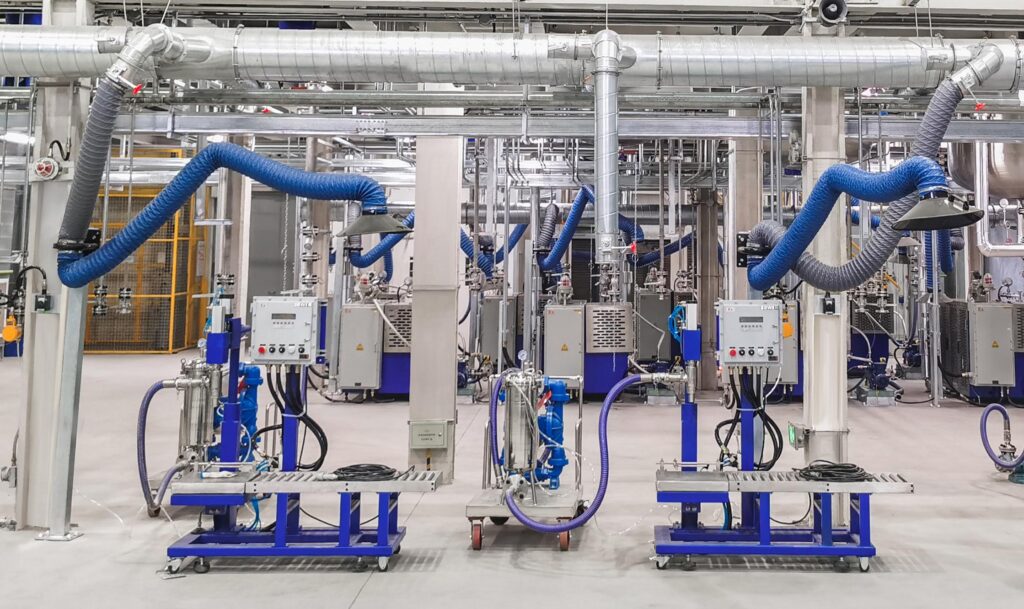

Filtering and Filling Systems
Filter System Overview
The filter system on a paint production line is a gatekeeper. It’s to maintain a commitment that only the best materials are used in the finished product. Its role is very important for keeping the quality and consistency of the paint.
Using state-of-the-art filtration technology, the FFS is able to effectively filter out impurities and contaminants from the raw materials. This iterative process increases the quality and functionality of the equipment. It equally increases its longevity by averting clogging and abrasion.
For industrial manufacturers, having a filter system they can depend on is an absolute game-changer, decreasing downtime and maintenance costs.
Adding in automatic paint fillers—run on a PLC-based system—represents yet another jump in accuracy and productivity. These systems are well-suited for abrasive materials, which is a typical challenge in the paint manufacturing process.
With high precision filling requirements, the PLC control provides accurate and consistent filling. The PLC system is equipped with an easy to use interface that provides straightforward, real-time, visual filling result displays.
This design gives operators the ability to easily oversee and fine-tune the process. This extreme level of control is necessary in order to achieve the high level of consistency that is needed in paint manufacturing.
Filling System Insights
The filling system is considered the heart of the production line, where accuracy and speed are essential. Automatic filling systems with weigh-based PLC control are notable for their ease-of-use and versatility.
These systems provide intuitive operation, fast change over, and close tolerance tuning making them the most efficient solutions for high volume production floors. Their supply is geared towards a 50 to 100,000 ton annual output, emphasizing their ability to serve very large operations.
The Flash-55 and Flash-20350 are excellent quality filtering and filling systems. They’re designed to meet the intense challenges of today’s production environments.
The Flash-55, for example, has a laser-based poorly closed lid detector, so every container gets the full seal guaranteed. This feature is important in protecting product integrity during storage and transportation.
Oliver + Batlle solutions, such as the Flash-20350, offer a tailored approach to automatic filling lines. This improves productivity and reduces error-prone manual processes.
Avoiding compliance issues and efficiency of the filling production are main factors to focus on when selecting filling system machinery. All equipment needs to be GMP-compliant – meaning equipment should be designed and used in accordance with industry standards that prioritize safety and quality.
By utilizing these sophisticated systems, manufacturers can realize dramatic gains in production efficiency and product quality. The processes are automated, which accelerates production and further reduces human error for a more dependable output.
Specialized Paint Production Processes
Emulsion Paint Production Steps
High-quality emulsion paint production requires a meticulous process that addresses the difficulties in creating a consistent and uniform product. The process starts with the blending of raw materials, an essential step that demands absolute accuracy. This means the pigments, binders, and solvents must be combined in a manner that ensures a uniform distribution, contributing to a reliable painting process.
The idea is to make a stable emulsion that stays mixed over long periods. In order to achieve this, specialized mixing equipment is critical. High-shear mixers excel at breaking down particles. They optimize the distribution of the components, which really helps boost the performance of the paint.
In the subsequent step, we mill the compound to develop the exact particle size and morphology needed. This step is very important in obtaining the best possible paint performance. Here, a multi-pass mill such as a horizontal sand mill is commonly used.
These specialized paint production processes mills refine the mix to the final required particle size, which usually falls between 15 and 60 microns. Sometimes, mills even collaborate in order to attain the most stringent standards for paint. For instance, a roller mill could run in front of a hammer mill.
This careful, detail-oriented work means that the final product provides uniform color and texture, essential elements for industrial producers.

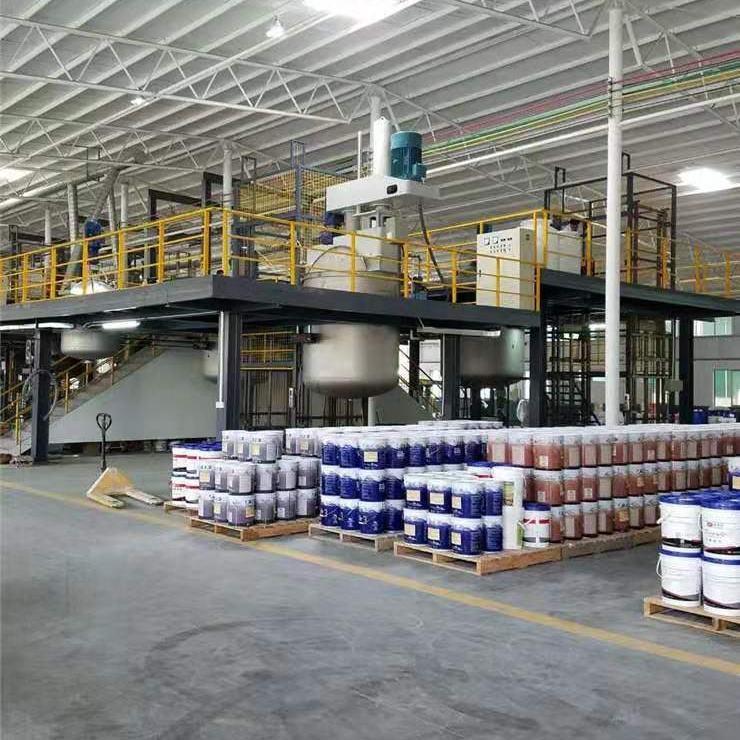

Decorative Paint Production Insights
For decorative paints, the priorities shift to aesthetics and versatility of application. Today manufacturers like ELE are leading the way in sophisticated grinding and dispersion equipment specifically designed for this sector. The grinding system focuses on the use of a serial horizontal sand mill to achieve excellent fineness.
This special equipment allows the development and grinding of precise color pastes. You can select from a basket grinding system or a pin-type horizontal sand mill. This versatility is important in creating an almost endless array of decorative finishes to satisfy the diverse needs of consumers.
The right operating layout creates a positive production environment. A multi-layer process platform is usually used, with separate areas for scattering, grinding, and mixing. For instance, scattering on the uppermost, grinding on the middle, and paint mixing on the lowest.
This build drastically reduces residue, lessens power consumption, and improves effectiveness. These kinds of operational efficiency insights are essential for paint manufacturers to meet increasing quality expectations while also increasing production output.
Automotive Paint Production Techniques
In automotive paint production processes, precision and durability are key factors. Here, the focus is on achieving a perfect finish that can withstand the elements. The process utilizes advanced technologies, including an automatic painting line, which ensures precision color matching and delivers superior performance and durability on automotive substrates.
High-tech equipment, such as that provided by ELE, is essential in this sector. Their machinery offers technical superiority by delivering unmatched fine machining capabilities, essential for paint application of decorative automotive paints to rigorous market specifications.
The grinding phase is the most technical as it usually takes a combination of mills to get that smooth, durable quality. Engineers with 20 plus years of experience add their wisdom and dependability to the mix.
They guarantee that each batch of car paint meets extremely precise performance standards. This specialized knowledge is critical in producing the highest quality paint with extraordinary visual appearance. In addition to beautifying vehicle surfaces, it provides long-term protection.
Plant Engineering and Processes
Within the paint production landscape, the complexities of plant engineering and processes, such as the automatic painting line and paint manufacturing equipment, are key to providing superior products. This section explores some of the most important elements crucial to establishing an effective paint production line.
Scheme Design Essentials
The first step in developing an efficient scheme design is understanding the unique challenges and goals of every project. Our team consists of material scientists and engineers with decades of experience in pigments, inks, paints and coatings. They are also better equipped to lobby Congress.
From the outset of every project, they immerse themselves in the science of processing formulations. This focus is necessary to develop an effective tailored scheme design. Consistency and uniformity are key in paint manufacturing.
A well-detailed design intent plan is key to success. Beyond the overall design, it smartly focuses on the floor plan, material flow, equipment marriage, so that each step in the process fits neatly into place for the right result.
Equipment Selection Guidelines
Selecting the appropriate equipment is critical to the efficiency and profitability of any paint production line. We pride ourselves on first knowing and then helping you achieve your production aims.
We start with understanding your requirements and needs first. Sometimes, achieving the necessary final particle size and shape, typically between 15 to 60 microns, requires using several mill types in succession.
Alternatives could be a roller mill to a hammer mill, or a jet mill and classifier. Our engineers are seasoned with more than 20 years of hands-on experience. They have the professional expertise to guide you to the best selection for your specific needs, achieving maximum efficiency, reliability and overall benefits.
Installation and Training Support
Once the equipment is chosen, the next step is installation and training. We’re committed to delivering on-site support that makes the transition from installation to operation seamless.
From the factory floor, our engineers can provide hands-on training to your staff, making sure they know how to operate the equipment safely and correctly. This training is absolutely essential for keeping your production line running smoothly and reliably.
Our service won’t stop at the delivery; we offer 24-hour online after-sales service and an engineer is available for on-site commissioning.
Maintenance and Support Services
Maintenance is key to maximizing the longevity of your equipment, while keeping it running at optimal performance. Our maintenance and support services are specifically tailored to maximizing your production line uptime.
We can provide any production capacity from 500 tons/year to 50,000 tons/year. Just ask – our team is eager to develop creative solutions uniquely suited to your organization!
Our consistently high-quality processing and unmatched reliability help keep your equipment up and running, reducing downtime and increasing productivity.
Technical Assistance for Machines
Technical assistance has long been a cornerstone of our service offering. Our engineers, with decades of deep experience, bring expert advice backed by the industry’s most extensive and sensitive asset database to troubleshoot and optimize every machine’s performance.
Having difficulty with toll milling, toll blending or toll dispersion? Our team of experts are the best at solving these complex challenges with a deep scientific methodology, ensuring your manufacturing processes operate at their highest potential.
Custom Painting Line Options
Tailored Painting Line Solutions
Whether you are designing a painting line from the ground up or looking to upgrade an existing facility, customization is key. Each Moldow Painting Line is designed with a focus on maximum efficiency, reliability and lifetime. Our in-house engineering team has more than 50 years of combined industry experience.
They work with you to make sure every solution is customized to address the unique realities of your project. Your ultimate aim is to build a system that increases productivity. Do all this while maintaining its energy efficiency—no matter if you’re working in plastic, metal or wood.
However, a large-scale metal coating project may require a more involved configuration that would take 18 weeks to set up. By contrast, you can have a much smaller plastic coating line operating in 8 weeks. The price can range greatly, from $20,000 to $500,000, depending on the intricacy and size of the endeavor.
This flexibility also gives us the freedom to imagine solutions that go beyond technical requirements. Simultaneously, we work to make sure that they fit within budgetary constraints.
Automatic Painting Line Overview
In today’s advanced manufacturing environment, automation is critical to improving productivity and making the industry more competitive. More than 90% of all powder coating plants have adopted automation in some capacity. This is also true for automated robotic systems that undertake complex painting functions with efficiency and accuracy.
Our control system is what powers these automated lines. From conveyor movement to paint application parameters and drying conditions, it seamlessly and efficiently controls every aspect. Such systems provide predictable quality every time and lower the chances of human error.
An automated custom painting line can be built with powder recovery systems. These systems go a long way toward keeping excess materials out of landfills, creating less waste, and innovating sustainability efforts. For more than 50 years Moldow has incorporated energy-saving solutions in our systems.
This is a testament to our ongoing commitment to being responsible and efficient stewards.
Manual Painting Line Overview
Though manual painting lines are rare, they are still extremely valuable, especially in the paint application process for projects that require extensive customization or detail. These systems typically feature manual coating preparation elements, allowing operators to fine-tune every aspect of the coating process. While they may not match the speed of an automatic painting line, they offer unparalleled flexibility for smaller operations or those needing highly specialized coatings.
Manual lines provide a level of flexibility that automated systems just can’t offer. Even though they’re meant to be under human supervision, these lines are a product of the same engineering principles that underpin our automated systems. By combining manual lines with sophisticated control systems, these setups can achieve high efficiency and reliability.
Their versatility makes them a priceless option in the right scenario, especially for custom projects that require unique paint types. While manual lines may not be as fast as automated counterparts, they excel in delivering tailored solutions for specific requirements.
Conclusion
Understanding the inner workings of paint production lines unveils an exciting world of creativity and invention. Each detail, from automatic feeding systems to personalized line solutions, makes all the difference in producing superior paint products. Specialized batch production processes deliver high quality control, with plant engineering that maximizes efficiency. Personalized options provide the space and freedom to think outside the box and cater to specific needs. By getting a grip on all these factors, manufacturers can optimize their production and create a path for success. Adopting new technology and methodologies increases overall efficiency while maintaining a high quality standard every time. Get into the nitty-gritty, discover the possibilities, and learn how they can revolutionize your facility. Join us for an in-depth look at maximizing the efficiency of your production line! Network with industry leaders to get the actionable strategies and solutions you need.
Frequently Asked Questions
What is a paint production line?
A paint production line, which serves as an automatic painting line, is a fully automated assembly system utilized in paint manufacturing. It progresses from feeding to pre-mixing, followed by grinding, filtering, and filling. These systems ensure that the paint application process is efficient and consistent while maintaining high quality standards.
How do feeding systems work in paint production?
Conveying systems move raw materials to the paint production line, playing a key role in ensuring an accurate, non-stop flow. This step is crucial for achieving consistent paint quality and high efficiency in the production process.
What role does pre-mixing play in paint manufacturing?
Pre-mixing is essential in the paint production line, as it ensures that raw materials, including various paint types, are incorporated into a homogeneous mixture before the grinding step, leading to superior dispersion and high efficiency in the final paint quality.
Why is wet-grinding important in paint production?
Wet-grinding enhances the quality and smoothness of particle sizes, ensuring that pigments are properly dispersed in the formulation, which ultimately creates bright and uniform colors essential for various paint types.
How are filtering and filling systems used?
Filtering out impurities is critical to maintaining the purity, consistency, and quality of the emulsion paint. Filling systems in the paint production line subsequently fill the paint into containers, providing accurate fill volume and waste reduction.
What specialized processes are used in paint production?
Specialized processes such as high-speed dispersion, bead milling, and color matching are necessary components of an automatic painting line. These processes are essential to ensure that each emulsion paint product meets various performance and aesthetic standards.
Can paint production lines be customized?
Customizations can be as specific as unique feeding systems, specialized mixing techniques, or specific filling methods to address a variety of production requirements.
