Artists’ Oil Paint Production Line: 2026 Guide to High-Viscosity Mixing

Oil Paint Production Line: Quick Facts at a Glance

Before we dive deep into the details, here’s everything you need to know about oil paint production lines in one quick table. Additionally, this snapshot will help you understand whether you’re ready to invest in professional manufacturing equipment or still exploring your options.

Production Factor	Specification
Typical Batch Size (Artists’ Oil Colours)	50L to 500L per batch
Active Mixing Time	30 to 60 min for most high viscosity oil paint pastes
Fine Grinding Passes	2 to 5 passes through three-roll mill
Total Production Cycle	5 to 6 hours per batch (optimized lines)
Key Quality Metric	Particle fineness below 10 microns
Core Equipment Needed	Planetary Mixer, Three-Roll Mill, Hydraulic Press-out System, Filling Machine
Boutique Scale Investment	1-5 tons annually (50L-100L batches)
Industrial Scale Investment	>20 tons annually (500L batches)

Pro Tip: Most successful oil paint manufacturers start with mid-size equipment (100L-300L batches) because it offers the perfect balance between flexibility and efficiency. Furthermore, this range allows you to produce multiple colors daily without wasting expensive pigments.

What Is an Oil Paint Production Line?

Let’s start with the basics. An oil paint production line is a complete system of connected machines that transform raw materials—like colorful pigments, natural oils, and special additives—into the smooth, creamy oil paint that artists use on canvas. Think of it like a bakery production line, but instead of making bread, you’re creating beautiful, high-quality paint.

The Core Purpose of an Oil Paint Manufacturing System

At its heart, an oil paint production line does one main job: it takes dry, powdery pigments and mixes them perfectly with drying oils (usually linseed oil) until every single tiny particle is completely coated. Moreover, the system must do this consistently, batch after batch, so that the blue paint you make today looks exactly like the blue paint you made last month.

Industrial oil paint production lines typically include several key components working together:

• Raw material handling systems – These carefully measure and move pigments and oils into the mixing area
• Pre-mixing equipment – Powerful planetary mixers that begin combining the ingredients
• High-shear dispersion units – Planetary mixers that break down clumps and start the real blending work
• Fine grinding equipment – Usually three-roll mills that create the ultra-smooth texture
• Finished paint storage tanks – Where the completed paint rests before packaging
• Automatic filling machines – Equipment that puts the paint into tubes or containers

Why Oil Paint Production Lines Differ from Regular Paint Systems

Here’s something important to understand: Artists’ Oil Colours production lines are very different from regular wall-paint systems. Oil paints are incredibly thick—almost like peanut butter or dough. In fact, premium oil paints have such high viscosity that gravity alone cannot move them through pipes.

“Manufacturing artist-grade oil paint requires specialized equipment designed for extreme viscosity. Standard paint mixers simply cannot handle the paste-like consistency that defines professional oil colours. That’s precisely why planetary mixers and hydraulic press-out systems have become industry standards.”

— Dr. Sarah Chen, Coatings Technology Expert, 15+ years in specialty paint formulation

This unique consistency means that oil paint production lines need specialized equipment—particularly hydraulic press-out systems—to move the thick paint from one stage to the next. Consequently, investing in the right production line equipment is absolutely essential for quality results.

From Small Batch to Industrial Scale

Production lines for oil paint come in different sizes to match different business needs. A small artisan paint maker might use a 50-liter batch system, while a large manufacturer supplying art stores worldwide might operate 500-liter industrial systems. Nevertheless, the basic process remains the same across all scales: mix, grind, test, and package.

The global paint and coatings industry is growing steadily, which means there’s strong demand for well-made oil paints. Therefore, understanding how these production lines work can help you make smart decisions about equipment investments and production planning.

The 4 Key Stages in Oil Paint Manufacturing

Now let’s explore the actual process. Manufacturing professional-quality oil paint happens in four distinct stages, and each one is absolutely critical to the final product. Importantly, skipping steps or rushing through any stage will result in inferior paint that won’t meet artist standards.

Stage 1: Pre-Mixing – Where Powder Meets Oil

The journey begins in the pre-mixing stage, where dry pigment powders first meet their oil binder. This might sound simple, but it’s actually quite challenging because pigment powders naturally clump together and resist getting wet.

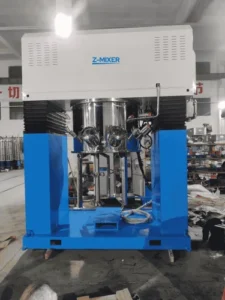

The Role of the Planetary Mixer

This is where the planetary mixer becomes your best friend. Unlike regular mixers that just spin in one direction, planetary mixers use a special double-motion system. Specifically, the mixing blades both rotate on their own axis AND revolve around the bowl—just like planets orbiting the sun (that’s why it’s called “planetary”).

This dual motion creates incredibly strong forces that push, pull, and shear the thick mixture. As a result, even the stubbornest pigment powder gets thoroughly incorporated into the oil without leaving any dry spots. Industrial systems typically handle batches from 500 to 600 liters during this stage.

Why Planetary Mixers Are Essential for High-Viscosity Oil Paint

For oil paint’s extreme viscosity, planetary mixers are specifically designed to handle paste-like consistency. The powerful extrusion and shear forces generated by the planetary motion ensure that dry powder is completely incorporated into the oil without any dead zones. However, most premium oil paint makers rely exclusively on planetary mixers because they handle ultra-high viscosity better than any other mixing technology.

Stage 2: Fine Grinding – The Heart of Quality Oil Paint Production

Here’s where the magic truly happens. The fine grinding stage is the most critical step in determining your final paint quality. During grinding, aggregated pigment particles get broken down, and each individual particle becomes perfectly coated with a thin film of oil.

Understanding the Three-Roller Mill

The three-roll mill is the gold standard for oil paint grinding. This machine consists of three heavy rollers positioned horizontally, each rotating at progressively higher speeds. The paint paste flows through the microscopic gaps between these rollers, experiencing tremendous shearing forces.

Here’s how it works step-by-step:

1. Feed roller – The paint first contacts this slowest-moving roller
2. Center roller – Rotating faster, it pulls the paint through a very narrow gap
3. Apron roller – Moving fastest, it creates the final intense shear that breaks apart particle clusters

The gaps between rollers can be adjusted to incredibly precise measurements—we’re talking about spaces smaller than the thickness of human hair. Consequently, this precision allows manufacturers to control exactly how fine the final paint texture becomes.

Material Choices: Steel vs. Ceramic vs. Stone Rollers

Different roller materials serve different purposes in the oil paint production line:

• Steel Rollers (Steel Mill) – These are used for large-scale production of most mainstream colors. They’re durable, cost-effective, and work excellently for the majority of pigments. Steel mills can handle high production volumes efficiently.
• Ceramic Rollers – Premium manufacturers like Schmincke often choose ceramic rollers to guarantee absolute color purity. Ceramic doesn’t react with or contaminate sensitive pigments, which matters especially for whites and pale tints.
• Stone Rollers (Stone Mill) – Traditional makers such as Michael Harding sometimes use stone mills to process watercolors or natural earth pigments. Stone creates a unique grinding texture that some artists specifically prefer.

The Multi-Pass Grinding Process

High-end oil paints don’t get ground just once. Instead, they typically require 3 to 5 passes through the three-roll mill. After each pass, quality control technicians test the paint’s fineness using a grindometer (also called a Hegman gauge).

The industry standard for professional Artists’ Oil Colours requires particle fineness below 10 microns. To put that in perspective, a human hair is about 70 microns wide—so we’re talking about particles seven times smaller than a hair’s width. This extreme fineness is what gives professional oil paint its incredibly smooth, buttery consistency.

“The difference between amateur and professional oil paint comes down to grinding. Inadequately ground paint will feel gritty, won’t spread smoothly, and will have inconsistent color. Multiple passes through a precision three-roll mill—that’s the secret to paint that performs like butter on canvas.”

— Mark Williams, Production Manager with 20+ years in specialty coatings manufacturing

Stage 3: Discharge, Deaeration, and Aging – Preparing Paint for Perfection

Once pre-mixing is complete, you have thick, dough-like oil paint that needs to move to the grinding equipment. However, because of the extreme viscosity, this “simple” transfer step actually requires specialized engineering solutions.

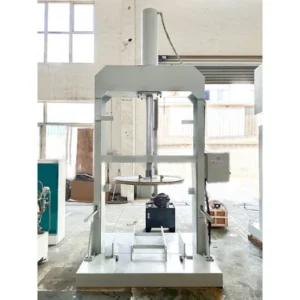

The Hydraulic Press-Out System: Solving High-Viscosity Challenges

Traditional pumps cannot handle premium Artists’ Oil Colours because the paint simply won’t flow. This is where the Z-MIXER Hydraulic Press-out System becomes essential. This innovative solution uses controlled hydraulic pressure to physically push the thick material from the mixing vessel.

Here’s how the system works:

• Mechanical Extrusion – A precision-controlled hydraulic ram pushes the paint either upward from the vessel bottom or downward through a discharge valve, depending on the system configuration
• Total Material Recovery – The press plate features a high-performance, chemical-resistant sealing ring that fits tightly against the vessel wall. This design ensures minimal residue (less than 1%), which is crucial when working with expensive pigments like Cadmium, Cobalt, or Quinacridone
• Seamless Integration – The system delivers batches up to 500L directly into the inlet of your three-roller mill or automated filling line
• Adjustable Pressure Control – Operators can adjust hydraulic pressure to synchronize discharge speed with the grinding mill’s processing capacity, preventing bottlenecks

This hydraulic press-out technology dramatically reduces waste and labor time. Moreover, it eliminates the need for manual scooping or scraping, which not only saves money but also improves worker safety and hygiene.

Vacuum Deaeration: Achieving Professional Texture

During high-energy mixing, tiny air bubbles inevitably get trapped inside the paint paste. If left uncorrected, these bubbles create several problems: they cause texture inconsistencies, promote premature oxidation, and can lead to the dreaded “skinning” effect where a hard layer forms on top of the paint.

Premium manufacturers address this through vacuum deaeration. The freshly mixed paint enters a vacuum chamber where reduced air pressure causes trapped bubbles to expand and escape. Consequently, the final product has that perfectly smooth, buttery texture that professional artists demand.

Additionally, vacuum deaeration offers these benefits:

• Oxidation prevention – Removing air prevents premature drying and skinning during storage
• Extended shelf life – Paint maintains its fresh consistency longer
• Consistent performance – Artists get predictable handling characteristics

The Aging Period: Quality Insurance Through Time

After grinding and deaeration, professional oil paint isn’t immediately packaged. Instead, it undergoes an aging period that serves as a critical quality failsafe. The freshly ground paint is transferred into specialized storage containers with sealed, air-tight liners.

Many premium makers, including Michael Harding, implement what’s known as “The Three-Month Rule.” The paint sits undisturbed for up to three months, during which time manufacturers monitor for any issues:

• Oil separation – Some pigments tend to separate from the oil binder over time; aging reveals this before the product reaches customers
• Unexpected hardening – Certain pigment-oil combinations may thicken or harden unexpectedly; catching this early prevents customer complaints
• Color stability – The resting period confirms that colors remain true and don’t shift or fade

While three months might seem excessive, this patience ensures that only properly formulated, stable paint reaches the market. Therefore, the aging stage represents a manufacturer’s commitment to quality over speed.

Stage 4: Testing and Packaging – Final Quality Assurance

The final stage brings everything together with rigorous testing and precise packaging. This is where quality control meets customer presentation.

Precision Testing Equipment

Before any paint gets packaged, it must pass stringent quality tests:

• Grindometer Testing – A precision grindometer measures particle fineness, confirming that the paint meets the required specification (typically below 10 microns for professional grades)
• Spectrophotometer Analysis – This advanced instrument measures exact color values, ensuring batch-to-batch consistency. If you’re producing Cadmium Red today, it must match the Cadmium Red from last month perfectly
• Viscosity Measurements – Technicians test paint consistency to ensure proper flow and handling characteristics
• Drying Time Tests – Samples are applied to test surfaces to verify that drying times match specifications

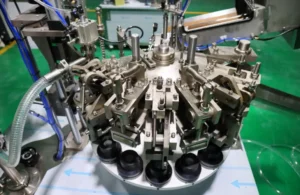

Automatic Tube Filling: Precision Packaging

Modern oil paint production lines use automatic tube filling machines that handle multiple operations simultaneously:

1. Tube preparation – Empty aluminum tubes are fed into the machine (some premium brands hand-apply actual paint swatches to show true color)
2. Precise filling – Paint is filled from the tail end of the tube in exact quantities
3. Sealing – Tube ends are crimped, folded, and sealed to prevent leakage
4. Quality verification – Automated systems check fill weight and seal integrity

These automatic systems accommodate various tube sizes including 35ml, 60ml, 150ml, and 225ml formats. Furthermore, they maintain hygienic conditions throughout packaging, which is essential for product shelf life.

Raw Materials: Pigments, Oils & Ratios That Define Quality

The quality of your oil paint ultimately depends on the raw materials you choose and how you combine them. Understanding these fundamentals helps you make smarter purchasing decisions and formulate better products.

Drying Oils: The Foundation of Oil Paint

Unlike wall paints that use water or solvents as carriers, Artists’ Oil Colours rely on natural drying oils as their primary binder. These special oils don’t just “dry” by evaporation—instead, they actually undergo a chemical reaction with oxygen in the air, gradually hardening into a durable film.

The most common drying oils used in the oil paint production line include:

• Linseed Oil – The traditional choice and still the dominant binder in professional oil paints. Linseed oil comes from flax seeds and offers excellent durability, strong color retention, and moderate drying time. Specifically, most high-quality oil paints contain refined linseed oil as their primary binder.
• Walnut Oil – A pale, non-yellowing alternative favored for white and light-colored paints. Walnut oil dries slightly slower than linseed but maintains clarity better over time. Consequently, many manufacturers use it specifically for their white paint formulations.
• Poppy Oil – Even slower-drying and paler than walnut oil, poppy oil is sometimes chosen for delicate pale tints. However, the resulting paint film is less durable, so it’s typically used only in specialty applications.
• Safflower Oil – Another non-yellowing option with slow drying characteristics. Safflower oil works well in whites and pale colors where yellowing would be particularly noticeable.

Understanding Pigment-to-Oil Ratios

Here’s something fascinating about professional oil paint: unlike many other coatings, oil paints typically contain a higher pigment fraction because pigments can be bound with relatively small amounts of oil. This high pigment loading is what gives oil paint its incredible color strength and coverage.

The Concept of Critical Pigment Volume Concentration (CPVC)

Modern oil paint manufacturers work with a concept called Critical Pigment Volume Concentration (CPVC). This represents the precise point where there’s just barely enough oil to coat all the pigment particles completely. Operating near the CPVC gives you paint that’s:

• Economical (using minimal oil while maintaining quality)
• Stable (predictable viscosity and consistency)
• Professional-grade (proper sheen, drying time, and flexibility)

However, here’s the important part: every pigment has a different CPVC. For example, a fluffy, lightweight pigment like Ultramarine Blue needs more oil per gram than a dense, heavy pigment like Cadmium Red. Therefore, professional formulations optimize the pigment-to-oil ratio for each specific color rather than using a single universal formula.

“Understanding pigment-to-oil ratios is perhaps the most overlooked aspect of paint manufacturing. Two paints might look identical coming out of the mixer, but improper ratios will reveal themselves months later through oil separation, excessive drying times, or weak film formation. Precision formulation isn’t optional—it’s everything.”

— Dr. James Patterson, Color Chemistry Researcher, 25+ years in pigment science

Beyond the Traditional “Fat Over Lean” Rule

Many people have heard of the artist’s rule “fat over lean” (apply oil-rich paint over oil-poor paint to prevent cracking). However, industrial manufacturers don’t formulate paint based solely on this principle. Instead, they optimize each color’s formulation for:

• Flexibility – The dried paint film must bend without cracking
• Drying time – Different applications require different drying speeds
• Sheen level – The balance of pigment-to-oil affects whether the dried paint appears matte, satin, or glossy
• Consistency – Paint must maintain stable rheology from tube or container

The Role of Additives in Modern Oil Paint Formulations

While pigments and oils form the bulk of oil paint, small amounts of specialized additives significantly improve manufacturing efficiency and final paint performance.

Common Additives in the Oil Paint Production Line

• Stearates (Metallic Soaps) – These help wet stubborn pigments during mixing. Aluminum stearate or zinc stearate, for instance, acts as a dispersion aid, making the mixing process faster and more thorough. Additionally, stearates can slightly adjust the paint’s consistency.
• Driers (Siccatives) – Small amounts of metal compounds like cobalt, manganese, or zirconium accelerate the oxidation process, helping the paint dry faster. However, excessive driers can cause brittleness, so careful measurement is essential.
• Stabilizers – Antioxidants prevent premature skinning or hardening during storage. These are particularly important for paints that will sit in inventory before sale.
• Waxes – Small amounts of natural waxes sometimes adjust consistency or create specific textural effects that artists desire.

Minimalist Formulation: A Quality Marker

Interestingly, the highest-quality artist oil paints typically contain the fewest additives. Premium manufacturers like Old Holland, Schmincke, or Michael Harding pride themselves on formulations that contain essentially just pigment and oil—nothing more.

This minimalist approach requires better manufacturing equipment (especially superior mixing and grinding systems) to achieve proper dispersion without relying on chemical aids. Therefore, when evaluating your production line for oil paint, remember that better equipment often allows you to create superior paint with simpler formulations.

Working with Different Pigment Types

Not all pigments behave the same way during manufacturing. Understanding these differences helps you choose the right equipment and processing parameters.

Organic vs. Inorganic Pigments

Pigment Type	Characteristics	Manufacturing Considerations
Organic Pigments (Quinacridones, Phthalocyanines)	Bright, transparent colors; smaller particle size; often expensive	Require gentle grinding to avoid degradation; may need fewer mill passes; excellent color strength means lower pigment loading
Inorganic Pigments (Cadmiums, Ultramarines, Iron Oxides)	Opaque, durable; varying particle sizes; generally more stable	Often require more aggressive grinding; higher pigment loading possible; very stable during processing
Natural Earth Pigments (Raw Sienna, Burnt Umber)	Variable composition; semi-transparent to opaque; economical	Can vary batch-to-batch requiring formula adjustments; generally easy to disperse; may contain impurities needing filtration

Ultimately, successful oil paint manufacturing requires understanding how each specific pigment interacts with your chosen oil and how your grinding equipment should be adjusted to optimize that particular combination. This knowledge comes with experience, but starting with high-quality mixing and milling equipment—like planetary mixers and precision three-roll mills—gives you the flexibility to handle all pigment types effectively.

How to Choose the Right Production Line Capacity

One of the most critical decisions you’ll make when setting up an oil paint production line is selecting the right capacity. Choose too small, and you’ll quickly outgrow your equipment. Choose too large, and you’ll waste capital on underutilized machinery while facing high fixed costs. Let’s explore how to make this decision wisely.

Understanding Your Market Demand and Growth Projections

Capacity planning starts with honest market assessment. Rather than building capacity based on wishful thinking, successful manufacturers ground their decisions in realistic demand analysis.

Key Questions to Answer Before Sizing Your Line

• What’s your current annual paint volume? – If you’re already producing using contract manufacturers or manual methods, you have real data to work with
• How many distinct colors (SKUs) will you produce? – More SKU variety requires more frequent changeovers, which affects effective capacity
• What’s your realistic growth rate? – Consider the broader market trends as well as your specific business plan
• Will you serve wholesale, retail, or both? – Different distribution channels create different demand patterns
• What’s your geographic market? – Local markets may have seasonal variations that affect production planning

Answering these questions helps you avoid the common trap of over-investing in capacity you won’t use for years. Moreover, it allows you to plan a phased equipment acquisition strategy that matches your growth curve.

The Unique Constraints of Artists’ Oil Colours Production

Unlike industrial coatings where manufacturers might produce 50,000-liter batches of a single color, Artists’ Oil Colours production operates under very different constraints. Understanding these differences is crucial for proper capacity planning.

Why Batch Sizes Stay Relatively Small

Even large manufacturers typically limit oil paint batches to a maximum of 500 liters. Several factors drive this:

• High SKU variety – Artist paint makers often produce 80-150 different colors. Producing massive batches of each would create enormous inventory
• Color consistency requirements – Smaller batches are easier to mix uniformly, ensuring every portion meets exact color specifications
• Equipment limitations – The extreme viscosity of oil paint makes very large batches difficult to mix thoroughly
• Quality control – If a batch fails quality testing, rejecting 500 liters is manageable; rejecting 5,000 liters is catastrophic
• Shelf life considerations – Even though oil paint is relatively stable, smaller batches ensure fresher product reaches customers

Therefore, when evaluating capacity, focus on batch frequency (how many batches per day/week) rather than trying to maximize individual batch size.

Production Capacity Guidelines for Different Business Scales

Based on current industry practices, here’s how manufacturers typically scale their oil paint production lines to match their business size:

Rule of Thumb: Artist Oil Paint Production Scales (2026)

Annual Output	Recommended Batch Size	Core Equipment	Typical Application
Boutique / Lab Scale (1-5 Tons)	50L – 100L	Lab-scale Planetary Mixer + 150mm Three-Roll Mill	Artisan paint makers, color development labs, specialty limited editions
Mid-Size Factory (5-20 Tons)	100L – 300L	Vacuum Planetary Mixer + 260mm Three-Roll Mill + Semi-Automated Filling	Regional brands, specialty formulations, growing businesses
Industrial Leader (>20 Tons)	500L (Maximum)	Automated 500L Line + Hydraulic Press-out System + Full Automation	National/international brands, wholesale distribution, extensive color ranges

Notice that even at industrial scale, batch sizes stay relatively modest compared to other coatings industries. This reflects the unique requirements of high-quality artist oil paint manufacturing.

Calculating Cycle Times and Daily Production Capacity

Understanding your equipment’s cycle time helps you accurately predict daily and weekly production capacity. Let’s walk through a realistic example.

Sample Capacity Calculation for a 300L System

Assume you’re operating a mid-size facility with 300-liter batching capability. Here’s how a typical production cycle breaks down:

1. Raw material preparation and loading – 30 minutes
2. Pre-mixing stage (planetary mixer) – 90-120 minutes
3. Transfer via hydraulic press-out – 15-20 minutes
4. Fine grinding (three-roll mill, 3 passes) – 90-120 minutes
5. Vacuum deaeration (if equipped) – 20-30 minutes
6. Transfer to storage/filling – 15 minutes
7. Equipment cleaning between colors – 30-45 minutes

Total cycle time: approximately 5-6 hours per batch

In a single 8-hour shift, you could theoretically complete one full batch with time to start a second. However, practical considerations (quality testing, material handling, breaks, etc.) typically limit you to one complete batch per shift.

Therefore, a 300L system running one shift produces:

• Daily capacity: 300 liters (one batch)
• Weekly capacity (5 days): 1,500 liters
• Annual capacity (48 working weeks): 72,000 liters

Converting to weight (oil paint averages about 1.3-1.5 kg/liter depending on pigment): Annual capacity ≈ 94-108 tons

However, no facility runs at 100% capacity continuously. Account for color changeovers, maintenance, quality holds, and holidays. A realistic capacity utilization is around 70-80%, bringing practical annual output to approximately 65-85 tons for a single-shift 300L operation.

Planning for Flexibility and Future Expansion

Smart capacity planning isn’t just about meeting today’s needs—it’s about building in flexibility for tomorrow’s growth and market changes.

Strategies for Scalable Capacity

• Modular equipment selection – Choose mixing and grinding equipment that can be duplicated easily. For example, starting with one three-roll mill but ensuring you have space and utilities to add a second identical unit later
• Multiple shift operation – A 300L single-shift operation can roughly triple capacity by moving to three-shift operation without buying new equipment
• Batch size versatility – Equipment that can handle both 100L and 300L batches gives you flexibility to optimize based on color demand
• Building infrastructure – Install electrical service, compressed air, and climate control with excess capacity to support future equipment additions

The Z-MIXER Approach to Flexible Capacity

At Z-MIXER TECH, we design our oil paint production lines with growth in mind. Our systems offer configurations ranging from 50L laboratory scales perfect for R&D and boutique production, all the way up to 500L industrial batches for high-volume manufacturing.

Importantly, our modular approach means you can start with a semi-automated 100L system and later upgrade to 300L or 500L capacity by adding equipment modules rather than replacing your entire line. Furthermore, our hydraulic press-out systems integrate seamlessly regardless of scale, ensuring consistent material transfer efficiency whether you’re processing 50 liters or 500 liters.

“The biggest mistake I see manufacturers make is either under-buying capacity and hitting limits within a year, or over-buying and struggling with the debt load while equipment sits idle. The sweet spot is buying equipment that handles your current demand at about 60-70% utilization, giving you room to grow without excessive overcapacity.”

— Michael Torres, Manufacturing Consultant specializing in paint production systems, 22+ years industry experience

Balancing Equipment Investment with Market Reality

Finally, remember that capacity decisions directly impact your financial viability. Larger equipment costs more not just to purchase, but also to operate, maintain, and house.

Total Cost of Ownership Considerations

• Capital cost – Purchase price of equipment
• Installation – Electrical, plumbing, ventilation, foundations
• Facility requirements – Floor space, climate control, safety systems
• Operating costs – Energy consumption, maintenance, consumables
• Labor – Operator and technician staffing requirements
• Training – Initial and ongoing staff training needs

A smaller, well-utilized system often delivers better return on investment than an oversized system running far below capacity. Therefore, careful market analysis combined with realistic growth projections should drive your capacity decisions, not aspirational thinking about where you’d like to be in ten years.

Global Paint Market Statistics (2024–2026)

Understanding broader market trends helps you make informed business decisions about investing in an oil paint production line. While Artists’ Oil Colours represent a specialty niche within the larger paints and coatings industry, overall market health provides important context for growth planning.

Current Market Size and Growth Trajectory

The global paints and coatings industry continues demonstrating solid growth despite economic uncertainties. Current data shows an industry in steady expansion, driven by construction activity, industrial manufacturing, and—importantly for our purposes—growing interest in art and creative pursuits.

Key Market Statistics (2023-2026)

Metric	Value	Notes
2023 Global Market Value	~USD 206. 6 Billion	Baseline year for current projections
2024 Estimated Value	USD 211-217 Billion	Reflecting steady year-over-year growth
2030-2032 Forecast	USD 280-304 Billion	Represents significant expansion opportunity
Compound Annual Growth Rate (CAGR)	4.5% – 5.0%	2024-2032 projection period
Asia-Pacific Market Share	46% – 47%	Largest regional market globally

These statistics demonstrate that the paints and coatings industry remains healthy and growing. Moreover, steady growth at 4.5-5% annually provides a favorable environment for specialized manufacturers entering or expanding within this market.

What These Numbers Mean for Oil Paint Manufacturers

While the statistics above cover the entire paints and coatings sector (including architectural paints, industrial coatings, automotive finishes, etc.), they provide important indicators for specialty Artists’ Oil Colours manufacturers.

Positive Indicators Supporting Investment

• Overall industry health – A growing broader market typically signals strong underlying demand for painting and coating products across all segments
• Economic stability – Sustained growth suggests consumers and businesses have disposable income for both essential and discretionary purchases
• Global expansion – Particularly in Asia-Pacific markets, there’s growing middle-class demand for quality art materials
• Steady rather than explosive growth – Moderate, predictable growth (around 4.5-5%) is actually healthier than rapid spikes that often lead to market corrections

Furthermore, within the specialty art materials segment specifically, several trends support optimism. The global art supplies market has seen increased interest driven by: social media showcasing artwork, growing DIY and hobby culture, therapeutic uses of art-making, and educational emphasis on creative skills. Consequently, demand for high-quality Artists’ Oil Colours continues growing steadily.

Regional Market Dynamics

Geographic market distribution affects where you might sell your products and potentially where you locate manufacturing facilities. Understanding regional dynamics helps with strategic planning.

Asia-Pacific: The Dominant Market

Currently representing 46-47% of global paint and coatings value, the Asia-Pacific region dominates the industry. This massive market share reflects several factors:

• Large population base – More people means more potential customers
• Rapid urbanization – Growing cities drive construction and renovation, which supports overall paint demand
• Manufacturing concentration – Many global paint manufacturers have production facilities in Asia, benefiting from lower labor and operational costs
• Growing middle class – Increasing disposable income creates markets for premium products including artist materials

For manufacturers considering where to establish production, Asia-Pacific locations offer both large local markets and export opportunities. However, competition can be intense, and quality standards vary significantly across the region.

North America and Europe: Mature but Stable Markets

While growing more slowly than Asia-Pacific, Western markets offer different advantages:

• Strong appreciation for premium, artist-grade materials
• Well-established distribution networks
• Higher average selling prices supporting specialty products
• Robust intellectual property protection
• Clear regulatory frameworks

These mature markets may be ideal for manufacturers positioning themselves as premium suppliers focused on quality rather than competing on price alone. Additionally, “made in USA” or “made in Europe” labeling can command price premiums in certain market segments.

How to Use Market Data in Your Business Planning

Market statistics become valuable when you translate them into actionable business decisions. Here’s how to apply this information when planning your oil paint production line investment.

Estimating Your Addressable Market

Start by determining what portion of the global market you can realistically serve:

1. Identify your product niche – Are you targeting professional artists, students, hobbyists, or a specific quality tier?
2. Define your geographic market – Will you sell locally, nationally, regionally, or attempt global distribution?
3. Research competitive landscape – Who else serves your target market, and what market share might be available?
4. Calculate addressable market value – Based on the above, estimate the dollar value of sales you might capture

For example, if you determine that professional-grade artist oil paints represent approximately 2% of the total North American paint market, and North America accounts for roughly 25% of the global market, you can estimate your addressable market opportunity. These calculations help justify equipment investments and inform production capacity decisions.

Planning for Growth Aligned with Market Trends

If the broader market is growing at 4.5-5% annually, planning your business for similar or slightly higher growth rates is reasonable. However, new market entrants often grow faster initially as they establish market presence, then settle into market-rate growth once established.

A realistic growth plan might look like:

• Years 1-2: 20-30% annual growth (building from zero or very small base)
• Years 3-5: 10-15% annual growth (establishing market position)
• Years 6+: 5-7% annual growth (mature operation growing with or slightly above market rate)

These projections help you plan equipment capacity additions, staffing increases, and facility expansions on a realistic timeline. Moreover, they provide credible growth forecasts when seeking financing or investment.

Energy, Safety & Environmental Compliance

Running a professional oil paint production line involves more than just making great paint. You must also manage energy consumption efficiently, protect worker safety, and comply with increasingly strict environmental regulations. Fortunately, understanding these requirements from the start helps you plan smarter and avoid costly retrofits or compliance problems later.

Energy Consumption in Oil Paint Manufacturing

Paint production requires significant energy, particularly during the high-shear mixing and fine grinding stages. However, modern equipment designs have dramatically improved energy efficiency compared to older systems. Understanding where energy goes helps you optimize operations and control costs.

Where Energy Gets Used in Your Production Line

The main energy consumers in a typical Artists’ Oil Colours production line include:

• Planetary mixers and dispersers – These powerful machines draw substantial electricity, especially when processing high-viscosity pastes. A typical 300L planetary mixer might consume 15-30 kW during active mixing cycles.
• Three-roll mills – The heavy rollers and hydraulic gap-adjustment systems require continuous power. Industrial three-roll mills typically draw 10-25 kW depending on size and throughput.
• Hydraulic press-out systems – The hydraulic pumps that power material discharge systems use energy in pulses during transfer operations.
• Vacuum systems – If your line includes vacuum deaeration, the vacuum pumps add to the energy load.
• Climate control – Maintaining proper temperature and humidity in the production area often represents the largest continuous energy draw.
• Lighting and auxiliary systems – General facility operations, quality control equipment, and administrative areas.

Modern Efficiency Improvements

Newer equipment designs achieve impressive efficiency gains. For example, advanced planetary disperser systems can process 10 tons of paint in just 15-30 minutes while occupying only about 30 m² of floor space. This high throughput per unit of energy and space translates to significantly lower energy cost per kilogram of finished paint.

Additionally, variable-frequency drives (VFDs) on modern mixing equipment allow motors to operate at optimal speeds for each process stage rather than running full-power continuously. Consequently, VFD-equipped systems often reduce energy consumption by 20-35% compared to fixed-speed alternatives.

Safety Requirements and Hazard Management

Oil paint manufacturing presents several safety considerations that must be addressed through proper equipment selection, facility design, and operational procedures. Worker safety isn’t just a moral obligation—it’s also a legal requirement and a business necessity.

Managing Solvent and VOC Exposure

While pure artist oil paints contain minimal solvents (mainly just pigment and oil), many manufacturers also produce paint mediums, thinners, or alkyd-modified oil paints that contain significant solvent levels. These materials create safety concerns:

• Fire and explosion hazards – Solvent vapors can ignite if exposed to sparks or high heat
• Health risks – Prolonged exposure to solvent vapors can cause respiratory problems, dizziness, and long-term health effects
• Environmental release – Uncontrolled solvent vapors contribute to air pollution and violate emission regulations

Professional installations address these hazards through multiple layers of protection:

Explosion-Proof Equipment and ATEX Compliance

When processing solvent-containing formulations, all electrical equipment in the production area must be rated for hazardous locations. This is where ATEX certification becomes critical. ATEX (from the French “ATmosphères EXplosibles”) is a European directive that specifies equipment safe for use in potentially explosive atmospheres.

ATEX-compliant equipment features:

• Enclosed motors that prevent sparks from escaping
• Special electrical connections that won’t arc during normal operation
• Intrinsically safe control circuits
• Proper grounding and bonding to prevent static electricity buildup

At Z-MIXER TECH, our production equipment comes with CE certification, ISO9001 quality management, and ATEX compliance certifications when specified for solvent applications. Therefore, you can be confident that the equipment meets rigorous European safety standards, which are among the world’s strictest.

“Safety certification isn’t just paperwork—it’s proof that equipment has been engineered and tested to protect your workers. We’ve seen facilities try to save money by purchasing uncertified equipment, only to face shutdown orders from safety inspectors. The false economy of cheap equipment becomes very expensive when you can’t legally operate it.”

— Patricia O’Brien, Industrial Safety Consultant, OSHA-certified with 17+ years in chemical manufacturing safety

Ventilation and Air Quality Management

Proper ventilation serves multiple purposes in paint manufacturing facilities. It removes potentially harmful vapors, controls dust during pigment handling, maintains comfortable working temperatures, and prevents vapor accumulation that could create explosion risks.

Professional installations typically incorporate:

• Local exhaust ventilation – Capture hoods positioned directly at emission sources (mixer openings, transfer points, filling stations)
• General dilution ventilation – Whole-room air exchange systems that continuously replace contaminated air with fresh air
• Air filtration – Particularly important where pigment powders are handled, preventing dust escape to the environment
• Vapor recovery or treatment – In some jurisdictions, solvent vapors must be captured and either recovered or thermally destroyed rather than vented to atmosphere

Environmental Compliance and Sustainability

Environmental regulations affecting paint manufacturing continue becoming more stringent worldwide. Planning for compliance from the start is far easier and cheaper than retrofitting later.

VOC Regulations and Low-Emission Formulations

Volatile Organic Compound (VOC) regulations limit the amount of solvent-based materials that can be released into the atmosphere. While traditional artist oil paints contain minimal VOCs (they’re essentially pigment bound in natural oil), regulations still affect several aspects of manufacturing:

• Cleaning solvents – Equipment cleaning between color batches often uses solvents, which must be managed properly
• Paint mediums and thinners – If you manufacture these alongside paint, VOC limits apply
• Facility emissions – Total facility VOC emissions may be regulated even if individual products are compliant

Forward-thinking manufacturers are exploring alternatives such as:

• Bio-based solvents with lower environmental impact
• Closed-loop cleaning systems that recycle solvents rather than releasing them
• Water-miscible oil paints that reduce or eliminate traditional solvents

Waste Management and Disposal

Paint manufacturing generates several waste streams that require proper management:

• Off-specification batches – Paint that doesn’t meet quality standards
• Equipment cleaning waste – Solvent rinses contaminated with paint residues
• Contaminated packaging – Drums, bags, and containers that held raw materials
• Filter media – Used filters from ventilation systems or paint filtration

Many of these materials are classified as hazardous waste, requiring specialized disposal through licensed waste management companies. Consequently, waste disposal represents a significant ongoing operational cost that should be factored into business planning.

Water Use and Wastewater Treatment

While oil paint manufacturing uses far less water than waterborne paint production, water still plays roles in cooling systems, equipment cleaning (for water-compatible materials), and facility sanitation. Wastewater may contain trace amounts of paint or solvents, requiring treatment before discharge to municipal sewers or the environment.

Some jurisdictions require on-site pretreatment systems, while others allow discharge to municipal wastewater treatment plants with appropriate permits. Understanding local requirements during facility planning prevents costly surprises.

Building Sustainability Into Your Operations

Beyond regulatory compliance, many manufacturers are discovering that sustainable practices also make good business sense. Customers increasingly value environmentally responsible suppliers, and efficiency improvements often reduce costs while helping the environment.

Practical Sustainability Strategies

• Energy monitoring – Installing meters on major equipment helps identify waste and optimization opportunities
• Waste minimization – Careful batch planning and improved process control reduce off-specification production
• Solvent recovery – Distillation systems can reclaim and reuse cleaning solvents, reducing both cost and environmental impact
• Preventive maintenance – Well-maintained equipment runs more efficiently and with fewer emergency repairs that generate waste
• Raw material optimization – Precise dosing systems reduce raw material waste during batching

Modern equipment from specialized suppliers like Z-MIXER TECH incorporates many sustainability features as standard: enclosed systems minimize emissions, precision controls reduce waste, and efficient designs lower energy consumption. Therefore, investing in quality equipment supports both your environmental goals and your bottom line.

Why Partner with Z-MIXER TECH for Your Oil Paint Line

Choosing equipment suppliers represents one of your most important business decisions. The right partner provides not just machinery, but ongoing support, expertise, and innovation that helps your business succeed long-term. Let’s explore why Z-MIXER TECH stands out as a trusted partner for oil paint production line installations worldwide.

Specialized Expertise in High-Viscosity Applications

Not all mixing equipment manufacturers understand the unique challenges of Artists’ Oil Colours production. The extreme viscosity—that thick, paste-like consistency—requires specialized engineering that differs dramatically from standard paint mixing equipment.

The Z-MIXER Difference: Purpose-Built for Extreme Viscosity

At Z-MIXER TECH, we’ve built our reputation as a professional manufacturer specializing in high-viscosity mixing applications. While we serve multiple industries (including putty production, sealants, adhesives, and specialty coatings), we deeply understand the specific requirements of oil paint manufacturing.

Our equipment handles materials that simply won’t flow—the kinds of pastes and doughs that defeat conventional mixers. Specifically, our planetary mixers employ powerful double-motion mixing action that reaches every portion of the batch, ensuring thorough dispersion even when processing materials with consistency similar to peanut butter or clay.

The Hydraulic Press-Out System: Our Signature Innovation

One of the most persistent challenges in oil paint manufacturing is moving the thick paste from mixing vessels to grinding equipment. Traditional pumps fail because the material won’t flow. Manual scooping is labor-intensive, wasteful, and inconsistent.

How Our Press-Out Technology Solves the Transfer Challenge

The Z-MIXER Hydraulic Press-out System represents decades of engineering refinement specifically targeting high-viscosity material transfer:

• Precision-controlled hydraulic rams – Programmable pressure and speed ensure gentle, consistent material discharge without degradation
• Advanced sealing technology – Chemical-resistant sealing rings achieve less than 1% residue, critical when working with expensive pigments like Cadmium or Cobalt
• Flexible integration – Our systems interface seamlessly with three-roll mills, filling lines, or intermediate storage
• Scalable design – The same proven technology works across our entire range, from 50L laboratory systems to 500L industrial installations

This technology isn’t just a convenience—it’s a fundamental enabler of efficient oil paint production. Moreover, by virtually eliminating material waste during transfer, the system often pays for itself within the first year through pigment savings alone.

Complete Line Integration: From Mixing to Filling

Many equipment suppliers sell individual machines, leaving you to figure out how to integrate them into a functioning production line. Z-MIXER TECH takes a different approach: we design complete, integrated systems tailored to your specific production requirements.

Turnkey Solutions That Work Together Seamlessly

When you partner with Z-MIXER TECH for your production line for oil paint, you receive:

• Process engineering support – Our team helps design the optimal workflow for your facility, product range, and capacity needs
• Equipment sizing and selection – We recommend the right combination of planetary mixers, dispersers, mills, and auxiliary equipment
• System integration – All components are designed to work together, with compatible controls, interconnections, and material handling
• Installation support – We provide detailed installation drawings, utility requirements, and on-site commissioning assistance
• Operator training – Your team learns proper operation, maintenance, and troubleshooting directly from our technical specialists

This comprehensive approach dramatically reduces the risks and headaches of equipment procurement. Instead of coordinating multiple suppliers and hoping everything works together, you have a single responsible partner committed to your success.

Flexibility Across the Full Range: 50L to 500L

Whether you’re a boutique artisan paint maker or an industrial-scale manufacturer, Z-MIXER TECH offers equipment appropriately scaled to your needs. Our modular design philosophy means you’re not locked into a single capacity—you can start small and expand as your business grows.

Scalable Solutions for Every Production Level

Production Scale	Z-MIXER Equipment Solution	Key Features
Laboratory / Boutique (50-100L)	Compact planetary mixer + benchtop three-roll mill + manual press-out	Perfect for R&D, color development, limited editions; lower capital investment; easy to operate
Mid-Size Production (100-300L)	Vacuum planetary mixer + industrial three-roll mill + hydraulic press-out + semi-auto filling	Optimized for growing businesses; excellent quality-to-cost ratio; room for expansion
Industrial Scale (500L)	Fully automated 500L system + advanced hydraulic press-out + PLC control + automatic filling line	Maximum efficiency; lowest per-unit costs; comprehensive automation; full data logging

Importantly, all our systems share common design principles and operating logic. Therefore, operators trained on a 100L system can easily transition to operating a 300L or 500L system as your business scales up. This continuity reduces training costs and operational risks during expansion phases.

Quality Certifications You Can Trust

In today’s global market, proper certifications aren’t optional—they’re essential for regulatory compliance, insurance coverage, and customer confidence. Z-MIXER TECH maintains comprehensive certifications that meet international standards.

Our Certification Portfolio

• ISO 9001 Quality Management – Internationally recognized certification confirming systematic quality control throughout our design, manufacturing, and support processes
• CE Marking – European conformity certification demonstrating compliance with health, safety, and environmental protection standards
• ATEX Certification – Specialized certification for equipment intended for use in potentially explosive atmospheres (critical when processing solvent-containing formulations)

These certifications represent more than just paperwork. They confirm that every Z-MIXER system undergoes rigorous design review, quality testing, and documentation to meet stringent international standards. Consequently, when you install Z-MIXER equipment, you can confidently satisfy your own regulatory requirements and insurance obligations.

Long-Term Partnership: Support Beyond the Sale

Equipment purchases represent the beginning of our relationship, not the end. Z-MIXER TECH provides ongoing support throughout the entire lifecycle of your production line.

Comprehensive After-Sales Support

• Technical helpline – Expert assistance when you need troubleshooting or operational guidance
• Spare parts availability – Critical wear parts and components stocked for rapid delivery
• Preventive maintenance programs – Scheduled service to keep your equipment running optimally
• Upgrade pathways – As technology advances, we offer retrofit options to enhance your existing equipment
• Process optimization – Ongoing consultation to help you improve efficiency and product quality

This commitment to long-term partnership reflects our business philosophy: your success is our success. When your oil paint production line runs efficiently and produces excellent quality, you grow your business—and you become a reference that helps us grow ours. Therefore, we’re genuinely invested in your ongoing success.

“We’ve worked with several equipment suppliers over our 30 years in business, but Z-MIXER stands out for their responsiveness and technical depth. When we had an issue during startup, their engineer was on-site within 48 hours and stayed until everything ran perfectly. That’s the kind of partnership that matters when your production is on the line.”

— David Kowalski, Production Director, specialty coatings manufacturer, 12-year Z-MIXER customer

Frequently Asked Questions (People Also Ask)

Based on questions we hear regularly from manufacturers planning oil paint production lines, here are detailed answers to the most common concerns. These insights should help you make better-informed decisions about your equipment investments and production planning.

How is oil paint manufactured in a factory?

Oil paint is manufactured by dispersing dry pigment powders into drying oils (usually linseed oil) using high-shear mixers, then refining the mixture through fine grinding equipment until the desired particle size and smoothness are achieved. The complete process typically includes these steps:

1. Pre-mixing – Pigments and oils are combined in a planetary mixer or high-speed disperser to create an initial paste
2. Fine grinding – The paste passes through a three-roll mill multiple times (typically 3-5 passes) to break down particle aggregates
3. Deaeration – Vacuum treatment removes air bubbles trapped during mixing
4. Aging – Premium paints rest for weeks or months to ensure stability
5. Quality testing – Particle size, viscosity, color, and drying time are verified
6. Filling and packaging – Paint is filled into tubes or containers and sealed

Throughout the process, manufacturers carefully control formulations, processing parameters, and quality checkpoints to ensure consistent, professional-grade results. Moreover, the extreme viscosity of oil paint requires specialized equipment—particularly hydraulic press-out systems—to move material between process stages efficiently.

What equipment is needed for an oil paint production line?

A complete oil paint production line requires several key pieces of equipment working together as an integrated system. The essential components include:

• Raw material handling systems – Automated weighing and dosing equipment for precise ingredient measurement
• Planetary mixer or high-speed disperser – For initial blending of pigments and oils into a uniform paste
• Three-roll mill – The critical equipment for achieving the fine particle size required for professional paint quality
• Hydraulic press-out system – Essential for transferring high-viscosity paste from mixers to mills or filling equipment
• Vacuum deaeration equipment – For removing trapped air bubbles (typically found in premium production lines)
• Storage tanks or containers – For holding finished paint before packaging
• Automatic tube filling machines – For efficient, consistent packaging into aluminum tubes
• Quality control instruments – Including grindometers, viscometers, and spectrophotometers

For solvent-containing formulations, all electrical equipment must be explosion-proof with ATEX certification, and appropriate ventilation systems are mandatory. Additionally, climate control systems help maintain consistent production conditions year-round.

What is the capacity of an industrial oil paint line?

Industrial oil paint lines typically operate with batch sizes ranging from 100 liters to 500 liters, which differs significantly from bulk architectural paint production. The relatively smaller batch sizes reflect the unique requirements of Artists’ Oil Colours manufacturing:

• Boutique/artisan scale – 50-100L batches producing 1-5 tons annually
• Mid-size operations – 100-300L batches producing 5-20 tons annually
• Industrial scale – 500L batches (maximum practical size) producing more than 20 tons annually

Modern coating equipment can process batches very quickly—some systems handle 10 tons in just 15-30 minutes of active mixing time on approximately 30 m² of floor space. However, total batch lead time, including material handling, quality testing, and equipment cleaning, typically ranges from 5 to 6 hours per batch.

Through lean optimization projects, manufacturers have achieved lead-time reductions of roughly 10-15%, bringing cycle times down from about 6. 24 hours to 5.34 hours per batch. Therefore, capacity depends not just on equipment size, but also on how efficiently you organize material flow and processing sequences.

How big is the global paint and coatings market?

The global paints and coatings market reached approximately USD 206. 6 billion in 2023 and is estimated at USD 211-217 billion for 2024. Industry forecasts project growth to approximately USD 280-304 billion by 2030-2032, representing a compound annual growth rate (CAGR) of about 4.5-5.0% during this period.

Regional market distribution shows that Asia-Pacific dominates with roughly 46-47% of global market value in 2023-2024, driven by large populations, rapid urbanization, and growing middle-class consumer spending. North America and Europe represent mature but stable markets with strong demand for premium specialty products.

While these figures cover the entire paints and coatings sector (including architectural, industrial, automotive, and specialty coatings), they indicate healthy overall industry conditions that support specialty segments like Artists’ Oil Colours. The steady, sustainable growth rate suggests favorable conditions for manufacturers investing in new production capacity.

What is the difference between oil paint and other paints in production?

Oil paint production differs from waterborne or solvent-based architectural paint manufacturing in several fundamental ways:

• Binder system – Oil paints use natural drying oils (linseed, walnut, safflower) instead of water or synthetic resins as the primary binder
• Viscosity – Artists’ Oil Colours have extremely high viscosity—almost paste-like consistency—compared to the flowable liquids typical of architectural paints
• Pigment loading – Oil paints typically contain higher pigment concentrations because pigments can be bound effectively with relatively small amounts of oil
• Processing equipment – The extreme viscosity requires specialized planetary mixers and hydraulic press-out systems that aren’t necessary for lower-viscosity paints
• Batch sizes – Oil paint production typically uses smaller batches (50-500L) compared to architectural paint production (often thousands of liters)
• Drying mechanism – Oil paints dry through oxidation polymerization rather than solvent evaporation or water evaporation
• Safety requirements – While pure oil paints have lower VOC content than solvent-based paints, facilities often still require explosion-proof equipment and appropriate ventilation for related products

These differences mean that manufacturers cannot simply adapt standard paint equipment for oil paint production. Instead, specialized equipment designed specifically for high-viscosity applications—such as the systems offered by Z-MIXER TECH—is essential for successful operation.

How long does it take to produce a batch of paint?

Production time varies depending on batch size, equipment sophistication, and formulation complexity, but a typical cycle for a 300-liter batch of Artists’ Oil Colours breaks down as follows:

• Raw material preparation and loading: 30 minutes
• Pre-mixing in planetary mixer: 1.5-2 hours
• Transfer via hydraulic press-out: 15-20 minutes
• Fine grinding (3-5 passes through three-roll mill): 1.5-2 hours
• Vacuum deaeration (if included): 20-30 minutes
• Transfer to storage or filling: 15 minutes
• Equipment cleaning for color changeover: 30-45 minutes

Total active processing time: approximately 5-6 hours per batch

Advanced systems with high-shear dispersion can complete the core mixing and dispersion stages in as little as 15-30 minutes for certain formulations. However, this rapid mixing time represents only one portion of the total cycle. Quality testing, material handling, and waiting time between stages add to the total lead time.

Lean manufacturing projects focusing on oil paint production have demonstrated that total lead times can be reduced by roughly 10-15% (from about 6.24 hours to 5.34 hours) through better material flow, reduced queue time, and optimized scheduling. Therefore, process organization matters almost as much as individual equipment speed.

How do manufacturers ensure consistent quality in oil paint?

Manufacturers ensure batch-to-batch consistency through a combination of controlled raw materials, standardized processing procedures, and comprehensive quality testing:

• Raw material specifications – Purchasing pigments and oils to tight specifications ensures consistent starting materials
• Automated recipe control – PLC-based systems execute identical mixing sequences for every batch, eliminating operator variability
• Standardized milling procedures – Fixed roller gaps and defined number of passes through the three-roll mill ensure repeatable particle size
• In-process testing – Grindometer readings verify fineness of grind during processing, allowing correction before batches are complete
• Final quality verification – Spectrophotometric color measurement, viscosity testing, and drying time evaluation confirm each batch meets specifications
• Documentation and traceability – Complete batch records enable investigation if quality issues arise, supporting continuous improvement
• ISO 9001 quality management systems – Many professional manufacturers operate under this internationally recognized quality standard

Ultimately, consistency comes from eliminating variability at every step. Consequently, investing in precision equipment, automated controls, and systematic quality procedures pays dividends through reduced batch rejection rates and stronger customer satisfaction.

Conclusion: Building Your Oil Paint Production Success

Manufacturing professional-quality Artists’ Oil Colours represents both a technical challenge and a tremendous business opportunity. As we’ve explored throughout this comprehensive guide, success requires understanding the complete production process, investing in appropriate equipment, and partnering with experienced suppliers who genuinely understand high-viscosity mixing applications.

Key Takeaways for Your Production Line Planning

Let’s recap the most critical points that should guide your decision-making:

• Process mastery matters – Understanding all four key stages (pre-mixing, fine grinding, deaeration/aging, and packaging) helps you make informed equipment selections
• Equipment quality drives product quality – Precision planetary mixers and three-roll mills enable consistent results that manual or low-quality equipment simply cannot achieve
• Hydraulic press-out systems are essential – The extreme viscosity of oil paint makes specialized material transfer equipment non-negotiable for efficient production
• Right-size your capacity – Match equipment capacity to realistic market demand, starting with systems that operate at 60-70% utilization to allow growth room
• Quality control is non-negotiable – Systematic testing at multiple process stages protects your reputation and reduces waste from rejected batches
• Compliance starts at design – Building in proper safety features, energy efficiency, and environmental controls from the beginning costs far less than retrofitting later
• Market fundamentals support investment – With steady 4.5-5% annual growth projected through 2032, the paint and coatings industry offers favorable conditions for new capacity investments

Why Now Is the Right Time to Invest

Several converging trends make this an opportune moment to establish or expand your oil paint production line:

• Growing global demand for quality art materials driven by social media, DIY culture, and therapeutic applications of art-making
• Increasing customer willingness to pay premium prices for superior, artisan-quality products
• Advanced manufacturing technology that makes professional production accessible at multiple scale levels
• Strong market fundamentals with sustainable growth projections through the next decade

Moreover, establishing manufacturing capability now positions you ahead of market growth rather than scrambling to catch up later. Equipment installations and process optimization take time—starting today means you’re ready to capture tomorrow’s opportunities.

Your Next Steps: From Planning to Production

Ready to move forward with your production line for oil paint? Here’s how to begin:

1. Define your production goals – Clarify your target market, product range, capacity needs, and growth timeline
2. Develop your product formulations – Work with color chemists or experienced formulators to create recipes optimized for your target quality level
3. Assess facility requirements – Determine space, utilities, ventilation, and regulatory requirements for your location
4. Engage equipment specialists – Partner with experienced suppliers who understand high-viscosity applications
5. Plan your investment – Develop realistic budgets covering equipment, installation, working capital, and operating expenses
6. Establish quality systems – Build quality control and documentation procedures into your plans from the start

Partner with Z-MIXER TECH: Your Trusted Manufacturing Solutions Provider

At Z-MIXER TECH, we’ve dedicated ourselves to solving the unique challenges of high-viscosity mixing and processing. Our specialized expertise in equipment for putty production, sealants, adhesives, and Artists’ Oil Colours means we understand exactly what you need to succeed.

Whether you’re establishing a boutique 50L artisan operation or expanding to industrial 500L capacity, we offer proven solutions backed by comprehensive certifications (CE, ISO9001, ATEX), responsive technical support, and genuine commitment to your long-term success.

Don’t let another production cycle pass with inefficient equipment or manual processes. The technology exists today to manufacture world-class Artists’ Oil Colours efficiently and profitably. Your success story starts with the right equipment partner—and Z-MIXER TECH is ready to help you write it.

---

External Resources and Further Reading

For additional information about oil paint manufacturing, industry standards, and market research, these authoritative sources provide valuable insights:

• Artsy: Inside the Painstaking Process of Making High-Quality Oil Paint – Detailed exploration of traditional and modern oil paint manufacturing methods
• Golden Paints Just Paint: Volume, Weight, and Pigment-to-Oil Ratios – Technical discussion of formulation principles and critical pigment volume concentration
• Langridge Colours: How Oil Paint is Made – Manufacturing insights from a professional artist paint manufacturer
• Ystral: Highly Effective Manufacturing of Paint and Coatings – Technical information about modern dispersion and mixing technology
• Grand View Research: Paints and Coatings Market Analysis – Comprehensive market size data and growth projections
• Fortune Business Insights: Paints and Coatings Market Report – Industry statistics and regional market analysis
• MarketsandMarkets: Paint & Coatings Market Forecast – Market trends and future outlook through 2030
• Polaris Market Research: Global Paints and Coatings Market – Environmental regulations and sustainability trends affecting the industry

Note: This article was prepared in March 2026 using the most current available data. Market statistics and projections are based on reputable industry research sources. Equipment specifications and recommendations reflect current manufacturing best practices for Artists’ Oil Colours production.
