Rotogravure Inks Manufacturing Equipment: Complete 2026 Buyer’s Guide

Quick Reference: Rotogravure Ink Production Line at a Glance

Choosing the right rotogravure inks manufacturing equipment can feel overwhelming. Therefore, we’ve created this quick comparison table to help you understand what you need based on your production goals. This table shows three common production line sizes and their key specifications.

Production Scale	Batch Size	Key Equipment Needed	Total Power Range	Best For
Pilot / Lab Line	100-500 L	Small disperser + compact bead mill + manual filling	10-25 HP	Color development, R&D, customer samples
Medium Production	1,000-5,000 L	Premix tank + high-speed disperser + bead mill + semi-auto filling	30-100 HP	Regional ink manufacturers, mid-scale packaging suppliers
Industrial Turnkey Plant	5,000-50,000 L	Automated batching + multiple dispersers + multi-mill system + CIP + auto filling	150-400+ HP	Large-scale ink producers, national/international distributors

Why Production Scale Matters for Your Investment

Selecting the correct production scale is crucial for your business success. Furthermore, the right equipment size directly impacts your production costs, energy consumption, and market competitiveness. Many new ink manufacturers start with medium-scale lines and expand later. On the other hand, established printing companies often invest in turnkey systems to meet growing packaging demand.

According to industry data, the global rotogravure printing inks market is growing steadily. In fact, the market is expected to reach USD 6-7.3 billion by 2030. This growth is driven mainly by flexible packaging applications, which account for approximately 63-64% of total rotogravure ink consumption in 2024.

Understanding Batch Size vs. Daily Output

It’s important to note that batch size differs from daily production capacity. For example, a 5,000-liter batch system can produce multiple batches per day. Consequently, your actual daily output might reach 15,000-20,000 liters with proper planning. Additionally, automated systems reduce changeover time between batches, thereby increasing overall efficiency.

---

“The key to selecting rotogravure ink manufacturing equipment is matching your batch size to your market demand, not just to your current orders. Planning for 30-50% growth capacity prevents costly expansions within the first three years.” — Dr. James Chen, Industrial Coating Systems Consultant

What Is Rotogravure Ink Manufacturing Equipment?

Rotogravure inks manufacturing equipment refers to specialized machinery designed to produce high-quality printing inks for rotogravure presses. These machines work together to mix, disperse, grind, and package inks used in flexible packaging, labels, and decorative printing. Moreover, this equipment handles both solvent-based and water-based formulations safely and efficiently.

The Core Purpose of Rotogravure Ink Production Systems

Rotogravure inks are low-viscosity liquid inks specifically designed for intaglio rotogravure presses. These presses transfer ink from engraved cells onto substrates such as plastic film, paper, and aluminum foil. Therefore, the ink must have very specific properties: fine particle size, consistent viscosity, excellent color strength, and proper drying characteristics.

Manufacturing equipment must achieve these precise specifications batch after batch. In addition, the equipment must handle pigments, resins, solvents, and additives without contamination. As a result, specialized dispersers, mills, and mixing systems are essential for consistent quality.

Why Rotogravure Ink Equipment Matters in Today’s Market

The rotogravure printing inks market continues to grow despite competition from flexographic and digital printing. Notably, solvent-based gravure inks still represent more than 55% of all formulations in 2024. However, environmental regulations are driving increased demand for water-based and UV/EB curable systems.

Here’s what the current market data shows:

Market Indicator	2024-2025 Data
Current Market Size	USD 4.7-5.8 billion
Projected Market Size (2030)	USD 6-7.3 billion
Growth Rate (CAGR)	3-5% annually through 2030
Solvent-Based Ink Share	55%+ of formulations, ~70% of revenue
Flexible Packaging Application Share	63-64% of total demand
Asia-Pacific Market Share	47-48% of global revenue

Main Applications Driving Equipment Demand

Flexible packaging remains the dominant application for rotogravure inks, especially in the food and beverage industry. For instance, snack food bags, stand-up pouches, and laminated films all rely on gravure printing. Similarly, pharmaceutical packaging and tobacco packaging use gravure inks for their excellent print quality and security features.

Additionally, decorative printing for wallpaper, gift wrap, and specialty papers continues to grow. These applications require equipment that can handle high-pigment formulations and produce brilliant, consistent colors. Consequently, manufacturers need reliable rotogravure inks manufacturing equipment to serve these diverse markets.

Key Equipment Components Overview

A complete rotogravure ink production system includes several integrated components. First, raw material storage tanks hold solvents, resins, and liquid additives. Next, high-speed dispersers create the initial pigment slurry. Then, bead mills grind particles to the final size. Finally, filling machines package the finished ink into containers.

Between these major components, pumps, filters, and control systems ensure smooth operation. Moreover, safety systems including emergency stops, explosion-proof motors, and ventilation protect workers and facilities. Therefore, selecting quality equipment from experienced manufacturers like Z-MIXER TECH ensures long-term reliability and safety compliance.

Complete Equipment List for Rotogravure Ink Production

Understanding every piece of equipment in a rotogravure ink production line helps you make informed investment decisions. Each component plays a specific role in transforming raw materials into finished, high-quality ink. Below, we’ll explore the complete equipment list with detailed explanations of how each machine contributes to the production process.

Essential Equipment Components and Their Functions

Equipment Type	Primary Role in Gravure Ink Production
Raw Material Storage Tanks	Hold solvents, resins, and intermediates before batching; often jacketed for temperature control.
High-Speed Disperser	Pre-mixes pigments, resins, and solvents to create homogeneous slurry (pre-dispersion/pulping stage).
Mixing Reactor / Kettle	Dissolves resins, controls temperature, and doses additives during formulation development.
Horizontal/Vertical Bead Mill	Performs fine grinding to achieve final particle size, gloss, and color strength specifications.
Sand Mill	Alternative grinding unit using bead media; particularly effective for gravure inks requiring ultra-fine particles.
Twin-Shaft / Low-Speed Mixer	Handles let-down stage, color adjustment, and final blending without introducing excessive air.
Bag or Cartridge Filter	Removes oversized particles and contaminants before filling to ensure print quality and prevent nozzle clogging.
Filling Machine (Auto/Manual)	Accurately fills finished ink into cans, drums, or intermediate bulk containers (IBCs).
Platforms, Pipelines, Control Systems	Integrates all components into semi- or fully automatic turnkey production systems with centralized monitoring.

Storage and Raw Material Handling Equipment

Raw material storage tanks form the foundation of any ink production system. These tanks must be chemically compatible with solvents and resins used in rotogravure inks. Typically, stainless steel tanks with temperature control jackets are used for temperature-sensitive materials.

Furthermore, proper storage prevents raw material degradation and ensures consistent quality. Many modern systems include automated batching equipment that draws precise amounts from storage tanks. This automation reduces human error and improves batch-to-batch consistency significantly.

In addition to liquid storage, dry material handling systems manage pigment powders safely. These systems often include dust collection equipment to protect workers and maintain clean production environments. Therefore, comprehensive raw material handling is essential for efficient rotogravure inks manufacturing equipment systems.

Mixing and Dispersion Equipment Details

The high-speed disperser is the workhorse of the pre-mixing stage. These machines use high-speed rotating discs to create intense shear forces that break down pigment agglomerates. Consequently, the disperser creates a uniform slurry that feeds efficiently into grinding equipment.

Mixing reactors and kettles provide controlled environments for resin dissolution and chemical reactions. These vessels typically feature heating and cooling jackets, vacuum capability, and variable-speed agitation. Moreover, they allow formulators to develop custom ink formulations with precise control over all process parameters.

Twin-shaft mixers combine high-speed dispersion with low-speed, high-torque agitation. This dual action is particularly useful for high-viscosity gravure inks or specialty formulations. Additionally, these mixers minimize air entrainment, which is critical for preventing foam and defects in the final ink.

Grinding Equipment: The Heart of Quality Control

The bead mill represents the most critical piece of equipment for achieving final ink quality. These mills use grinding chambers filled 70-90% with ceramic, glass, or steel beads. As the product circulates through the chamber, the beads collide and create intense grinding forces.

This grinding action reduces pigment particles to micro- or even nano-scale sizes. As a result, the finished ink achieves superior color strength, gloss, and transparency. Sand mills work on similar principles but often feature different agitator designs optimized for specific gravure ink formulations.

Modern bead mills include advanced features such as variable-speed drives, temperature control, and automated separation systems. These features allow operators to fine-tune the grinding process for each ink formulation. Therefore, investing in quality grinding equipment directly impacts your final product quality and market competitiveness.

---

Finishing and Packaging Equipment

After grinding, inks pass through sophisticated filtration systems. Bag filters and cartridge filters remove oversized particles that could cause print defects or clog gravure press nozzles. Typically, gravure inks are filtered to 25-50 microns depending on application requirements.

Finally, filling machines package the finished ink accurately and efficiently. Semi-automatic filling systems suit medium-scale production, while fully automatic lines handle high-volume operations. Additionally, modern filling equipment includes weight verification, capping, and labeling capabilities.

Complete integration of all these components creates efficient, safe production systems. Z-MIXER TECH specializes in designing and manufacturing integrated rotogravure inks manufacturing equipment from 5,000L to 50,000L per batch, with full CE, ISO9001, ATEX, and IECEx certifications.

The 4-Step Rotogravure Ink Manufacturing Process

Understanding the complete manufacturing process helps you select the right equipment configuration for your needs. The rotogravure ink production process follows four distinct stages, each requiring specific equipment and careful control. Let’s explore each step in detail to see how raw materials transform into high-performance printing inks.

Step 1: Raw Material Preparation and Batching

Equipment used: Storage tanks, weighing systems, automated batching equipment, powder induction systems

The first step involves gathering and measuring all raw materials according to the ink formulation. Pigments, resins, solvents, and additives must be weighed accurately to ensure consistent quality. In manual systems, operators measure materials using scales and add them to the disperser manually.

However, automated batching systems offer significant advantages for medium and large-scale production. These systems automatically pump liquids and convey powders from storage to the mixing vessel. Consequently, automated batching reduces labor costs, improves accuracy, and minimizes exposure to solvents and chemicals.

Moreover, proper sequencing during batching is crucial for successful dispersion. Typically, solvents and resins are loaded first, followed by pigments and additives. This sequence ensures optimal wetting of pigment particles and prevents agglomeration. Therefore, experienced formulators carefully design batching sequences for each ink type.

Safety is paramount during raw material handling, especially with solvent-based gravure inks. Explosion-proof equipment, proper ventilation, and grounding systems protect workers and facilities. Additionally, many facilities use closed transfer systems to minimize solvent vapor release and environmental impact.

“Automated batching isn’t just about labor savings—it’s about consistency. We’ve seen ink manufacturers reduce batch variation by 40-60% simply by eliminating manual weighing errors.” — Maria Rodriguez, Process Engineering Manager, Global Coatings Alliance

Step 2: Pre-Dispersion and Homogenization

Equipment used: High-speed dispersers, premix tanks, circulation pumps

Pre-dispersion is where the magic begins. The high-speed disperser creates intense shear forces that break down pigment clusters and wet each particle with resin and solvent. This stage typically takes 30-90 minutes depending on pigment type and formulation complexity.

During pre-dispersion, the disperser blade rotates at high speeds (typically 1,000-3,000 RPM). The blade design creates both turbulent flow and shear zones that efficiently separate pigment particles. As a result, a homogeneous pigment slurry forms that can flow easily into the grinding equipment.

Proper pre-dispersion can reduce total grinding time by 30-50% compared to poor premixing. Furthermore, thorough premixing reduces wear on grinding media and mill components. Therefore, investing in quality dispersion equipment pays dividends throughout the entire production process.

Temperature control during dispersion is also important. Friction from high-speed mixing generates heat that can affect resin viscosity and solvent evaporation. Consequently, many dispersers include cooling jackets or circulation systems to maintain optimal processing temperatures.

Step 3: Fine Grinding to Final Specifications

Equipment used: Bead mills, sand mills, circulation systems, fineness gauges

Fine grinding represents the most critical step for achieving final ink quality. The pre-dispersed slurry is pumped through a bead mill where grinding media create intense impact and shear forces. This grinding action reduces particles to their final size, typically in the range of 0.5-10 microns for gravure inks.

The grinding chamber is filled approximately 70-90% with ceramic, glass, or steel beads. As the agitator rotates, beads collide with tremendous force, crushing and shearing pigment particles. Meanwhile, the ink continuously circulates through the mill until target fineness is achieved.

Quality control during grinding is essential. Operators regularly check fineness using grind gauges (also called Hegman gauges) that measure particle size. Additionally, color strength and gloss measurements ensure the ink meets specifications. Most rotogravure inks require fineness readings of 6-8 Hegman units or finer.

Bead size selection affects grinding efficiency significantly. Smaller beads create more contact points but require longer residence time. Larger beads grind faster but may not achieve ultra-fine particle sizes. Therefore, experienced operators select bead sizes based on target fineness and production throughput requirements.

Modern bead mills include advanced separation systems that prevent beads from escaping with the finished product. Additionally, temperature monitoring and cooling systems prevent heat damage to sensitive resins and pigments. These features ensure consistent, high-quality output batch after batch.

Step 4: Let-Down, Filtration, and Filling

Equipment used: Let-down tanks, twin-shaft mixers, filters, filling machines, quality control instruments

After grinding, the concentrated ink base (often called “mill base” or “grind”) moves to the let-down stage. Here, additional solvents and additives are blended in to achieve final viscosity, color, and performance specifications. This dilution step requires gentle mixing to avoid air entrainment.

Twin-shaft or low-speed mixers are ideal for let-down because they provide thorough mixing without creating foam. Operators carefully add thinners and performance additives while monitoring viscosity with flow cups or viscometers. Subsequently, the ink is adjusted until it meets precise specifications for the target printing application.

Filtration is the next critical step. Even with careful processing, small contaminants or oversized particles can remain in the ink. Therefore, bag filters or cartridge filters remove particles larger than 25-50 microns. This filtration prevents print defects and protects expensive gravure printing cylinders and doctor blades.

Finally, filling machines package the finished ink into containers. Semi-automatic filling systems require an operator to position containers and activate the fill cycle. In contrast, fully automatic systems handle container feeding, filling, weighing, capping, and labeling without manual intervention.

Quality control testing occurs throughout the filling process. Samples are tested for color accuracy, viscosity, fineness, gloss, and drying characteristics. Only inks that pass all specifications are released for shipment. This rigorous quality control ensures customer satisfaction and protects your brand reputation.

Modern production lines integrate all four steps into seamless, automated systems. Z-MIXER TECH specializes in designing complete rotogravure inks manufacturing equipment systems that optimize each process step while maintaining strict safety and environmental standards.

Essential Equipment Breakdown

Now that you understand the complete process, let’s dive deeper into each equipment category. Understanding the technical details of rotogravure inks manufacturing equipment helps you make informed purchasing decisions. Each component has specific features and capabilities that directly impact your production quality, efficiency, and profitability.

5.1 Raw Material Handling Systems: Wet vs Dry Materials

Raw material handling represents the first critical control point in rotogravure ink manufacturing. Materials are typically divided into two categories: wet and dry. Each category requires different handling equipment and safety considerations.

Wet materials include solvents, resin solutions, liquid additives, and plasticizers. These materials are stored in stainless steel tanks with appropriate chemical compatibility ratings. Most facilities use jacketed storage tanks that can heat or cool materials to maintain optimal viscosity for pumping and mixing.

Transfer of wet materials typically uses pneumatic or electric pumps with flow meters for accurate batching. Additionally, closed transfer systems minimize solvent vapor emissions and protect workers from exposure. Many modern systems include automated valve sequences controlled by programmable logic controllers (PLCs).

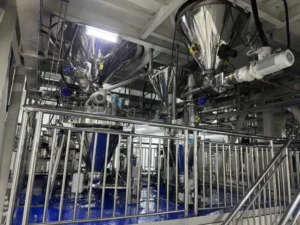

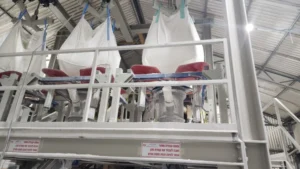

Dry materials primarily consist of pigment powders, fillers, and dry additives. These materials present unique challenges including dust generation, static electricity, and potential explosion hazards. Therefore, specialized dust collection systems and grounding equipment are essential safety features.

Dry material handling often uses vacuum conveyors or screw feeders to move powders from storage to the mixing area. Furthermore, powder induction systems create a vortex that draws pigment into the liquid phase without creating dust clouds. This technology improves worker safety and reduces material waste significantly.

The sequence of raw material addition affects dispersion efficiency dramatically. Generally, solvents and resins are loaded first to create a liquid base. Next, pigments are added gradually while the disperser runs to ensure proper wetting. Finally, additives are incorporated once the pigment is partially dispersed. This sequence prevents agglomeration and reduces total mixing time.

“Proper raw material sequencing can reduce dispersion time by 25-40%. We always recommend dissolving resins completely before adding pigments—it’s a simple step that makes a huge difference in final ink quality.” — Dr. Robert Zhang, Senior Formulation Chemist, Asia Ink Technologies

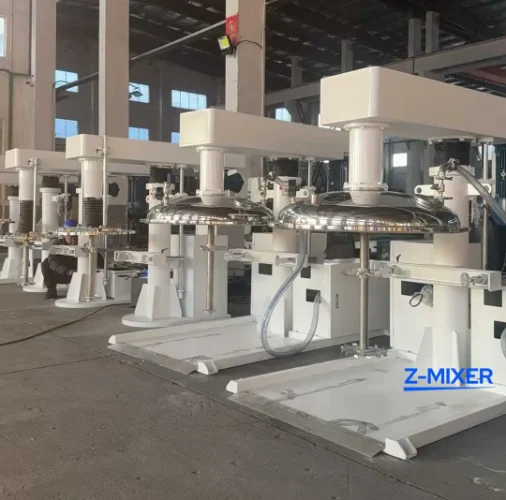

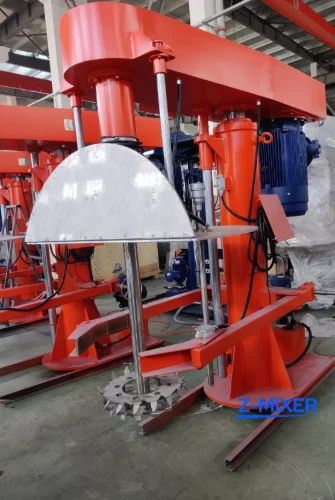

5.2 Pre-Dispersion Equipment: High-Speed Dispersers

The high-speed disperser is the cornerstone of effective rotogravure ink production. This equipment creates the initial pigment slurry through intense mechanical shear and turbulent flow. Understanding disperser capabilities and specifications helps you select the right model for your production needs.

High-speed dispersers operate on a simple but highly effective principle. A toothed disc blade rotates at high speeds (typically 1,000-3,000 RPM) creating radial flow patterns. The blade edges create intense shear zones that break apart pigment agglomerates. Simultaneously, turbulent flow throughout the vessel ensures all material passes through the high-shear zone multiple times.

Disperser selection depends primarily on batch volume and formulation viscosity. The table below shows typical capacity and power ranges for rotogravure ink production equipment:

Equipment Type	Typical Capacity Range	Typical Power Range	Main Use in Gravure Ink Production
High-Speed Disperser	100-5,000 L	5-50 HP	Pigment pre-dispersion and initial mixing of gravure ink formulations
Bead Mill	50-2,000 L	5-75 HP	Fine grinding of rotogravure inks to final particle size specifications
Sand Mill	100-3,000 L	10-80 HP	Micro-grinding and high-shear dispersion for specialty gravure inks
Twin-Shaft Disperser	100-5,000 L	10-50 HP	High-viscosity ink blending and dual-action mixing applications

Modern high-speed dispersers include variable frequency drives (VFDs) that allow precise speed control throughout the dispersion cycle. Initially, low speeds wet the pigment without splashing. Subsequently, speeds increase to create maximum shear once the batch is homogeneous. This speed profiling optimizes dispersion while minimizing energy consumption.

For higher-viscosity formulations, twin-shaft dispersers combine high-speed dispersion with low-speed, high-torque agitation. The high-speed shaft provides intense shear while the slow-speed anchor or gate agitator scrapes vessel walls and promotes bulk flow. Consequently, twin-shaft designs handle challenging formulations that would overload standard dispersers.

Safety features are essential for solvent-based gravure ink production. Explosion-proof motors rated for Zone 1 or Division 1 hazardous areas prevent ignition sources. Additionally, proper grounding, bonding, and inert gas blanketing systems create multiple layers of protection against fires and explosions.

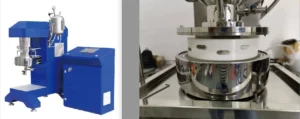

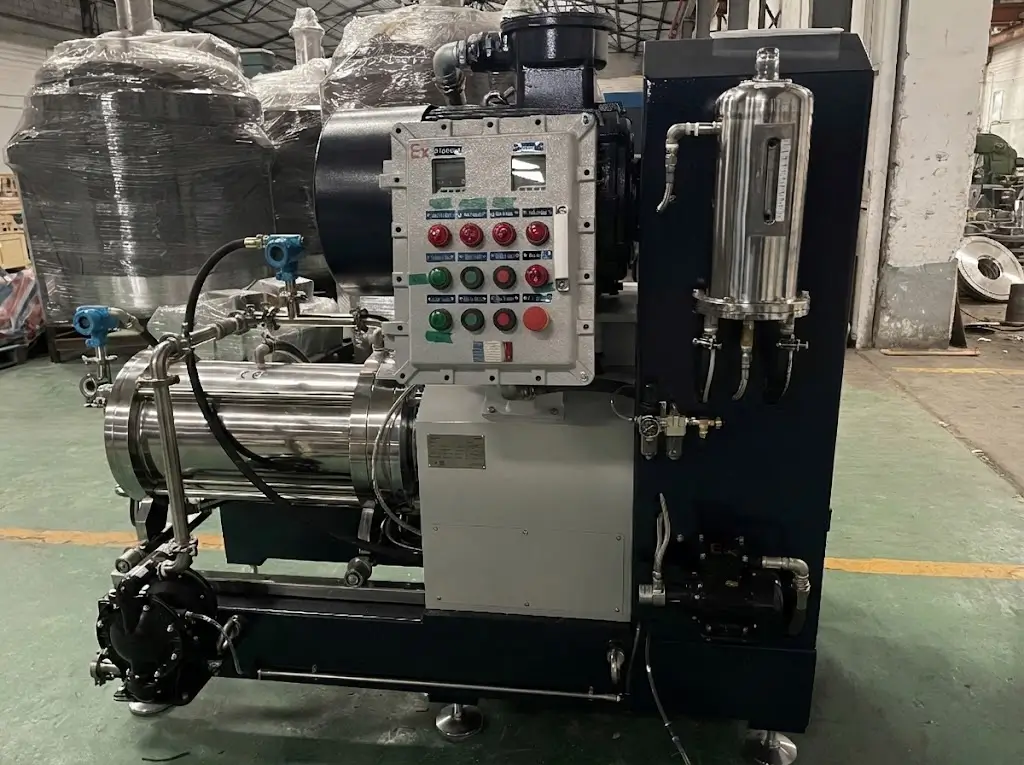

5.3 Fine Grinding: Bead Mills and Sand Mills

Fine grinding transforms pre-dispersed slurry into finished-quality rotogravure ink. The bead mill is the most critical piece of equipment for achieving the particle size, color strength, and gloss that gravure printing demands. Understanding bead mill technology helps you select equipment that delivers consistent, high-quality results.

How bead mills achieve superior grinding: Bead mills use small grinding media (beads) made from ceramic, glass, or steel. These beads fill the grinding chamber to approximately 70-90% of its volume. An agitator with specially designed discs or pins rotates inside the chamber, accelerating the beads to high velocities.

As beads collide with each other and with agitator elements, they create intense impact and shear forces. Pigment particles trapped between colliding beads are crushed and sheared to progressively smaller sizes. Meanwhile, the ink continuously circulates through the mill until target fineness is achieved.

The grinding chamber design significantly affects efficiency and product quality. Horizontal bead mills offer advantages for gravure ink production including easier maintenance, better temperature control, and higher throughput. Vertical mills work well for lower-viscosity systems and smaller batch sizes.

Bead size selection is critical for optimal grinding performance. Smaller beads (0.3-0.8 mm) create more contact points and achieve finer particle sizes, ideal for high-quality gravure inks. Larger beads (1.0-2.0 mm) grind faster but may not reach ultra-fine specifications. Therefore, many facilities stock multiple bead sizes to optimize different ink formulations.

Quality control during grinding: Operators monitor fineness progression using Hegman gauges that measure the largest particle size in the ink. Most rotogravure inks target 6-8 Hegman units (corresponding to particles of 12.5-6.25 microns or smaller). Additionally, gloss measurements and color strength tests ensure the ink meets specifications.

Temperature control is essential during grinding because friction generates significant heat. Excessive temperature can damage heat-sensitive resins, cause solvent evaporation, and reduce grinding efficiency. Modern bead mills include jacketed chambers with circulating coolant to maintain optimal processing temperatures.

Sand mills operate on similar principles but often feature different agitator designs optimized for specific applications. Some gravure ink manufacturers prefer sand mills for ultra-high-pigment formulations or specially formulated metallics and pearlescent inks. The choice between bead mills and sand mills depends on your specific product portfolio and production requirements.

Bead separation systems prevent grinding media from escaping with the finished product. Modern mills use sophisticated screen or gap separation designs that retain beads while allowing ink to flow freely. Furthermore, automatic bead loading and discharge systems reduce downtime and improve operational safety.

5.4 Finishing Equipment: Filters and Filling Machines

After grinding and let-down, finishing equipment ensures your rotogravure ink meets final quality standards and is packaged properly for shipment. Filtration and filling represent the final quality gates before ink reaches your customers’ printing presses.

Filtration systems: Even with careful processing, microscopic contaminants or oversized pigment particles can remain in finished ink. These particles cause serious problems on gravure presses including scratched cylinders, doctor blade wear, and print defects. Therefore, thorough filtration is non-negotiable for quality gravure inks.

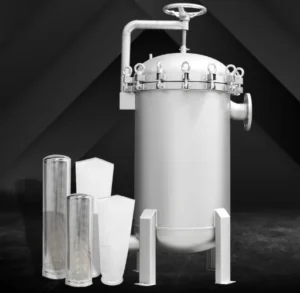

Bag filters are the most common filtration method for rotogravure inks. These filters use disposable fabric bags with precise pore sizes (typically 25-50 microns for gravure applications). As ink flows through the bag, particles larger than the pore size are trapped. Bag filters are economical, easy to change, and handle high flow rates effectively.

Cartridge filters offer finer filtration and longer service life for critical applications. These filters use pleated media that provides large surface area in compact housings. Additionally, cartridge filters can achieve finer filtration (down to 5-10 microns) for specialty gravure inks used in high-quality packaging and decorative printing.

Pressure monitoring across filters indicates when filter replacement is needed. Rising pressure differential signals that the filter is loading with contaminants and flow is becoming restricted. Consequently, timely filter changes maintain production efficiency and prevent filter failures that could contaminate finished ink.

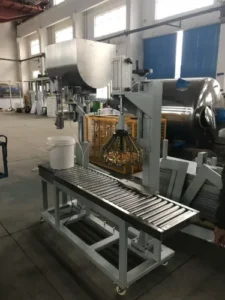

Filling machines and packaging: The filling machine is the final piece of production equipment before ink ships to customers. Proper filling ensures accurate quantities, prevents spills and waste, and maintains product quality during packaging.

Semi-automatic filling machines require operators to position containers under the fill nozzle and activate the fill cycle. These systems use volumetric or gravimetric (weight-based) filling to ensure accurate quantities. Semi-automatic systems work well for medium-scale production and offer flexibility for multiple container sizes.

Fully automatic filling lines integrate container feeding, filling, weighing, capping, and labeling without manual intervention. These sophisticated systems include conveyor systems, automatic cap feeders, and vision systems for quality verification. Consequently, automatic filling lines maximize throughput while minimizing labor costs and human error.

Container compatibility is an important consideration for gravure ink filling equipment. Metal cans, plastic pails, and intermediate bulk containers (IBCs) all require different handling and filling approaches. Therefore, flexible filling equipment that accommodates multiple container types provides the best long-term value.

Z-MIXER TECH provides complete finishing solutions including filtration and filling equipment integrated with dispersers and bead mills. Our turnkey systems ensure smooth material flow from raw materials to finished, packaged rotogravure inks ready for shipment.

Production Line Configurations: Which Size Do You Need?

Selecting the right production line size is one of the most important decisions you’ll make when investing in rotogravure inks manufacturing equipment. The right configuration balances current production needs with future growth while optimizing capital investment. Let’s explore the three main production line scales and when each makes the most business sense.

Small Pilot Lines (100-500L): Perfect for R&D and Custom Colors

Small-scale or pilot production lines serve specific, valuable purposes in the rotogravure ink industry. These compact systems typically handle batch sizes from 100 to 500 liters and require relatively modest floor space and investment. However, don’t underestimate their importance—pilot lines are essential for product development and market testing.

When to choose a pilot line: Consider investing in small-scale equipment if you’re developing new ink formulations, creating custom colors for specific customers, or testing new raw materials before committing to full-scale production. Additionally, pilot lines are ideal for producing specialty inks with limited market demand but high profit margins.

A typical pilot line configuration includes a 100-300 liter high-speed disperser, a compact 50-100 liter bead mill, basic filtration, and manual or semi-automatic filling equipment. Total installed power typically ranges from 10-25 HP, making these systems economical to operate.

Furthermore, pilot lines allow your technical team to perfect formulations before scaling up. Testing on pilot equipment reduces waste of expensive pigments and additives. Once the formulation is optimized, you can transfer it directly to larger production equipment with confidence.

Many successful ink manufacturers maintain pilot lines even after installing large production systems. These facilities use pilot equipment for color matching, customer sample preparation, and ongoing product development. Therefore, pilot lines often provide excellent return on investment throughout their operational life.

Medium Production Lines (1,000-5,000L): The Sweet Spot for Growing Businesses

Medium-scale production lines represent the most popular choice for established regional ink manufacturers and growing businesses. These systems balance production capacity, flexibility, and capital investment effectively. Batch sizes from 1,000 to 5,000 liters meet the needs of most regional packaging and printing markets.

When to choose medium-scale production: If you’re supplying multiple regional customers, producing 5-20 tons of ink per day, or maintaining diverse product portfolios with frequent changeovers, medium-scale equipment provides optimal flexibility. Additionally, these systems suit businesses transitioning from small-scale production to larger operations.

A complete medium-scale line typically includes dedicated raw material storage tanks, a 1,000-3,000 liter premix tank with high-speed disperser, one or more 500-1,500 liter bead mills in circulation, filtration systems, and semi-automatic filling equipment. Total installed power ranges from 30-100 HP depending on configuration.

Automation at the medium scale focuses on critical quality and safety points. Automated batching systems ensure consistent formulations while reducing manual weighing errors. Temperature control systems maintain optimal processing conditions. Emergency shutdown systems protect equipment and personnel during abnormal conditions.

Medium-scale lines offer excellent scalability. Many manufacturers start with a single disperser and bead mill, then add parallel grinding circuits as production grows. This modular approach minimizes initial investment while providing clear expansion paths. Consequently, medium-scale systems adapt to changing business needs over many years.

Operating costs for medium-scale production are very competitive. Batch sizes are large enough to achieve good material utilization and labor efficiency, yet small enough to minimize product waste during formulation changes. Therefore, many businesses find medium-scale production offers the best balance of efficiency and flexibility.

Large Turnkey Plants (5,000-50,000L): Industrial-Scale Production Excellence

Large turnkey production plants represent the ultimate in rotogravure ink manufacturing capability. These sophisticated systems handle batch sizes from 5,000 to 50,000 liters and can produce hundreds of tons of ink per week. Turnkey plants integrate all equipment, controls, and safety systems into fully automated production facilities.

When to choose turnkey plants: Large-scale systems make business sense when you’re supplying national or international markets, producing 50+ tons daily, or serving major packaging converters with consistent, high-volume ink requirements. Additionally, turnkey plants suit businesses prioritizing maximum automation to reduce labor costs and ensure consistent quality.

Z-MIXER TECH specializes in complete turnkey rotogravure inks manufacturing equipment from 5,000L to 50,000L per batch. Our turnkey systems include automated raw material handling, multiple high-speed dispersers, multi-mill grinding loops, advanced control systems, CIP (clean-in-place) equipment, and fully automatic filling machines.

Automation in turnkey plants extends to every process step. Programmable logic controllers (PLCs) manage batching sequences, monitor temperatures and pressures, control grinding cycles, and coordinate filling operations. SCADA (supervisory control and data acquisition) systems provide operators with real-time production monitoring and historical data analysis.

Safety systems in large plants are comprehensive and sophisticated. Multiple interlocks prevent unsafe operating conditions. Explosion suppression systems protect against solvent vapor ignition. Emergency shutdown systems can safely stop all operations within seconds. These safety features protect valuable assets and ensure worker safety in high-volume production environments.

Turnkey project delivery includes engineering, equipment manufacturing, installation, commissioning, and training. Z-MIXER TECH manages the entire process from initial design through successful startup. Our experienced engineers work closely with your team to ensure the facility meets production targets, safety standards, and environmental regulations.

Return on investment for turnkey plants comes from several sources. Labor productivity improves dramatically through automation. Product consistency reduces customer complaints and returns. Energy efficiency reduces operating costs. Furthermore, large batch sizes minimize raw material waste and reduce overall production costs per kilogram.

“We’ve installed over 50 turnkey ink production plants globally in the past decade. The manufacturers who succeed with large-scale automation are those who plan for 5-10 year production growth, not just current capacity needs.” — Thomas Weber, Senior Project Engineer, Industrial Process Solutions

Market Opportunity: Why Invest in Rotogravure Ink Equipment Now?

Understanding current market trends and growth projections helps you make confident investment decisions. The rotogravure printing inks market shows steady growth driven by packaging demand, especially in developing economies. Let’s examine the data that makes rotogravure inks manufacturing equipment an attractive investment in 2026 and beyond.

Global Market Size and Growth Projections

The rotogravure printing inks market demonstrates consistent growth despite competition from alternative printing technologies. Recent market research shows the global market is valued at approximately USD 4.7-5.8 billion in the 2024-2025 period. Furthermore, projections indicate the market will reach USD 6-7.3 billion by 2030.

This growth translates to a compound annual growth rate (CAGR) of approximately 3-5% through 2030. While this may seem modest compared to some technology sectors, it represents steady, reliable growth backed by fundamental packaging demand. Consequently, investments in rotogravure inks manufacturing equipment benefit from predictable market expansion.

Market Indicator	Current Value (2024-2025)	Projected Value (2030)	Growth Rate / Share
Global Market Size	USD 4.7-5.8 billion	USD 6-7.3 billion	3-5% CAGR
Solvent-Based Ink Share	>55% of formulations, ~70% of revenue	Expected to remain dominant	Slow decline as water-based grows
Flexible Packaging Application	63-64% of demand	Expected to grow to ~65-67%	Fastest-growing application segment
Asia-Pacific Regional Share	47-48% of global revenue	Expected to exceed 50%	Fastest regional growth rate
Water-Based Ink Growth	Smaller segment, growing	Expected to gain market share	Higher CAGR than solvent-based

Asia-Pacific: The Primary Growth Engine

The Asia-Pacific region dominates the rotogravure printing inks market, accounting for approximately 47-48% of global revenue in 2024. Moreover, this region is growing faster than Europe and North America, driven by expanding middle-class populations and increasing packaged food consumption. Countries including China, India, Indonesia, and Vietnam show particularly strong growth.

Several factors drive Asia-Pacific market expansion. Rapid urbanization increases demand for packaged foods and consumer goods. Growing disposable incomes shift consumption patterns toward convenience packaging. Additionally, expanding retail infrastructure creates new distribution channels requiring attractive, high-quality packaging.

For rotogravure inks manufacturing equipment suppliers, Asia-Pacific represents tremendous opportunity. New ink production facilities are being built across the region to serve local packaging converters. Furthermore, many Western ink manufacturers are establishing Asian production capacity to serve this growing market. Therefore, demand for quality production equipment remains strong.

Solvent-Based Inks Still Dominant Despite Environmental Trends

Solvent-based gravure inks maintain dominance in the market, representing more than 55% of formulations and approximately 70% of market revenue in 2024. This dominance persists because solvent-based inks offer superior print quality, excellent adhesion to difficult substrates, and fast drying speeds that maximize press productivity.

However, environmental regulations are gradually shifting the market toward lower-VOC alternatives. Water-based gravure inks are growing faster than solvent-based formulations, driven by European and North American environmental standards. Nevertheless, the transition is gradual because many packaging applications still require the performance characteristics only solvent-based inks can provide.

This market evolution creates opportunities for flexible rotogravure inks manufacturing equipment. Modern production lines should accommodate both solvent-based and water-based formulations. Z-MIXER TECH designs equipment with material compatibility and safety features that handle diverse ink chemistries. Consequently, our customers can adapt their product portfolios as market demand evolves.

Flexible Packaging: The Application Driving Demand

Flexible packaging applications account for approximately 63-64% of rotogravure ink demand in 2024, and this share continues growing. Flexible packaging offers numerous advantages including light weight, material efficiency, shipping cost savings, and excellent shelf appeal. Therefore, brands across industries increasingly choose flexible packaging over rigid alternatives.

Food and beverage packaging represents the largest segment within flexible packaging applications. Snack foods, coffee, pet food, and liquid products all rely heavily on gravure-printed flexible packaging. Additionally, pharmaceutical packaging and personal care products use gravure printing for high-quality graphics and tamper-evident features.

This application focus directly impacts equipment selection. Flexible packaging inks require excellent adhesion, high gloss, and vibrant colors to create shelf appeal. Therefore, production equipment must achieve very fine particle sizes and tight color control. Bead mills with advanced grinding technology are essential for meeting these demanding specifications.

How to Select the Right Rotogravure Ink Manufacturing Equipment

Choosing the correct equipment configuration requires careful analysis of multiple factors. The right rotogravure inks manufacturing equipment balances production capacity, product quality, safety, automation, and total cost of ownership. Use this comprehensive checklist to guide your selection process and ensure you invest in equipment that delivers long-term value.

Capacity and Throughput Requirements

Start by analyzing your current and projected production volumes. Calculate daily, weekly, and annual ink production requirements for each product category. Additionally, consider seasonal variations and potential market growth over the next 5-10 years. This analysis helps you determine appropriate batch sizes and equipment capacities.

Batch size selection involves important tradeoffs. Larger batches reduce labor costs per kilogram and improve material utilization. However, they also reduce flexibility for formulation changes and increase inventory requirements. Generally, targeting 3-6 batches per day provides good balance between efficiency and flexibility.

Equipment capacity should exceed current production needs by 30-50% to accommodate growth. Furthermore, consider installing parallel processing lines rather than single large lines. Multiple smaller lines provide redundancy if equipment requires maintenance and allow simultaneous production of different ink types. Therefore, carefully evaluate whether one large system or multiple medium systems better suits your needs.

Throughput also depends on formulation complexity and changeover frequency. Difficult-to-disperse pigments require longer processing times. Frequent color changes increase cleaning time between batches. Consequently, discuss your specific product portfolio with equipment suppliers to ensure recommended systems meet real-world throughput targets.

Formulation Type Compatibility

Different ink formulations impose different requirements on production equipment. Solvent-based gravure inks require explosion-proof equipment and robust ventilation systems. Water-based formulations need corrosion-resistant materials and may require higher agitation power due to different rheology. UV and EB-curable inks have their own special handling requirements.

Viscosity range is a critical specification for high-speed dispersers and bead mills. Low-viscosity inks (similar to water) require different agitator designs than high-viscosity pastes. Additionally, some specialty gravure inks contain abrasive fillers that increase wear on mill components. Therefore, specify the complete viscosity and composition range when requesting equipment quotations.

Material compatibility affects equipment construction. Stainless steel wetted parts are standard for most gravure inks. However, some formulations require special alloys or coatings to prevent corrosion. Seals and gaskets must resist swelling and degradation from solvents. Consequently, provide detailed formulation information including solvent types, pH range, and abrasive content to equipment suppliers.

Future formulation plans should influence equipment selection. If you anticipate adding water-based inks to a currently solvent-based product line, select equipment with appropriate material construction from the beginning. Retrofitting equipment for different chemistries often costs more than specifying correct materials initially. Therefore, consider your complete product roadmap during equipment selection.

Automation Level and Integration

Automation level significantly impacts both capital cost and operating expenses. Manual systems require minimal upfront investment but incur higher labor costs and suffer from batch-to-batch variation. Fully automated systems cost more initially but deliver superior consistency and lower long-term operating costs. The right automation level depends on your production volume, labor costs, and quality requirements.

Consider automating these critical functions for consistent quality: raw material batching and weighing, temperature control during mixing and grinding, grinding cycle monitoring and endpoint detection, and finished product filling and packaging. Even modest automation of these key parameters dramatically improves batch consistency.

Integration with facility systems adds value in larger operations. Modern rotogravure inks manufacturing equipment can connect to plant-wide networks for production scheduling, inventory management, and quality data collection. This integration enables real-time production monitoring and data-driven process optimization. However, ensure integration costs and complexity match your actual operational needs.

Operator interface design affects productivity and error rates. User-friendly touchscreen controls with clear graphics help operators run equipment correctly and respond to problems quickly. Recipe management systems store proven formulations and processing parameters, ensuring consistency when running repeat batches. Therefore, evaluate control system usability as carefully as mechanical specifications during equipment selection.

Safety Certifications and Compliance

Safety certifications protect your workers, facility, and business. Rotogravure inks manufacturing equipment handling flammable solvents must meet stringent safety standards. Verify that all equipment carries appropriate certifications for your region and application before making purchase commitments.

Essential certifications for rotogravure ink equipment include:

• CE marking: Required for equipment sold in European Union countries; demonstrates compliance with EU safety, health, and environmental standards.
• ISO 9001: Quality management system certification ensuring consistent manufacturing quality and documentation.
• ATEX certification: European standard for equipment used in explosive atmospheres; essential for solvent-based ink production.
• IECEx certification: International system for certifying equipment for use in explosive atmospheres; increasingly recognized globally.
• UL or CSA approval: North American safety standards; required for equipment installed in US and Canadian facilities.

Beyond certifications, evaluate specific safety features. Explosion-proof motors prevent electrical sparks in hazardous areas. Emergency stop buttons allow immediate shutdown during emergencies. Interlocks prevent unsafe operating sequences such as opening charging ports while agitators run. Furthermore, proper guarding protects operators from rotating equipment and pinch points.

Z-MIXER TECH provides complete rotogravure inks manufacturing equipment with CE, ISO9001, ATEX, and IECEx certifications as standard. Our engineering team ensures every system meets safety requirements for your specific application and location. Additionally, we provide comprehensive safety documentation to support your facility permitting and insurance requirements.

Energy Efficiency Features

Energy costs represent a significant portion of ink production operating expenses. Therefore, energy-efficient rotogravure inks manufacturing equipment delivers measurable savings throughout its operational life. Several features contribute to reduced energy consumption and lower operating costs.

Variable frequency drives (VFDs) on high-speed dispersers and bead mills allow motors to run only at required speeds. VFDs reduce starting current, minimize mechanical stress, and enable speed optimization for different process stages. Consequently, VFD-equipped equipment typically consumes 20-40% less energy than fixed-speed alternatives.

Proper pre-dispersion reduces total grinding energy significantly. Thorough premixing on high-speed dispersers breaks down agglomerates efficiently before grinding. As a result, bead mills reach target fineness faster with less energy consumption. This process optimization pays dividends through reduced operating costs and increased productivity.

Insulation and heat recovery systems minimize energy waste. Jacketed vessels with proper insulation maintain temperatures with less heating or cooling energy. Heat exchangers can capture waste heat from grinding operations and use it for other facility needs. Therefore, consider total system energy efficiency rather than individual component specifications.

Safety, Compliance & Environmental Standards

Safety and environmental compliance are not optional—they’re essential for successful rotogravure ink production. Modern regulations protect workers, communities, and the environment from hazards associated with solvent-based manufacturing. Understanding these requirements helps you select appropriate rotogravure inks manufacturing equipment and design facilities that operate legally and safely for decades.

ATEX and IECEx: Protecting Against Explosion Hazards

Solvent-based gravure inks create potentially explosive atmospheres during production. Solvents evaporate and mix with air, creating vapor-air mixtures that can ignite from electrical sparks, hot surfaces, or static discharge. Therefore, equipment must be specifically designed to prevent ignition sources in hazardous areas.

ATEX (ATmosphères EXplosibles) is the European directive governing equipment used in explosive atmospheres. ATEX certification requires rigorous testing and documentation proving equipment will not create ignition sources. All electrical components including motors, switches, and sensors must be explosion-proof or intrinsically safe depending on the hazardous zone classification.

IECEx provides international certification for explosion-protected equipment based on International Electrotechnical Commission (IEC) standards. Many countries now recognize IECEx certification, making it valuable for equipment used in multiple global locations. Furthermore, IECEx and ATEX certifications are largely harmonized, so equipment often carries both certifications simultaneously.

Hazardous area classification determines required protection levels. Zone 0 (or Division 1 in North America) indicates areas where explosive atmospheres exist continuously or for long periods. Zone 1 (Division 1) covers areas where explosive atmospheres are likely during normal operations. Zone 2 (Division 2) applies to areas where explosive atmospheres occur only during abnormal conditions.

Most rotogravure inks manufacturing equipment operates in Zone 1 or Zone 2 classifications. Disperser and bead mill motors require appropriate explosion-proof enclosures. Control panels must be pressurized or located in non-hazardous areas. Additionally, all bonding and grounding connections must prevent static electricity accumulation.

“Explosion protection isn’t about preventing explosions—it’s about preventing ignition sources. When you eliminate all possible ignition sources through proper equipment design and procedures, you create fundamentally safe operations even in hazardous atmospheres.” — Sarah Mitchell, Safety Engineering Director, Chemical Processing Safety Council

VOC Regulations and Emission Control

Volatile organic compound (VOC) emissions from solvent-based ink production face increasingly strict regulation worldwide. VOCs contribute to ground-level ozone formation and air quality problems. Consequently, environmental agencies limit VOC emissions through various mechanisms including emission caps, technology requirements, and reporting mandates.

Emission control strategies for ink production facilities include several approaches. First, closed transfer systems minimize solvent vapor release during raw material handling and product filling. Second, vapor recovery systems capture and condense solvent vapors rather than venting them to atmosphere. Third, thermal or catalytic oxidizers destroy VOCs in exhaust streams before release.

Equipment selection impacts VOC emissions significantly. Sealed high-speed dispersers with vapor recovery connections reduce fugitive emissions during mixing. Bead mills with mechanical seals rather than packing glands minimize shaft seal leakage. Furthermore, automated filling machines with enclosed fill heads reduce emissions during packaging.

Water-based ink production substantially reduces VOC emissions compared to solvent-based formulations. However, water-based systems still emit some VOCs from coalescent solvents and other additives. Therefore, even water-based production benefits from proper ventilation and emission controls. Planning for both solvent-based and water-based production provides maximum regulatory flexibility.

Worker Safety and Industrial Hygiene

Protecting workers from chemical exposure is both a legal requirement and an ethical responsibility. Rotogravure ink production involves handling pigments, solvents, and additives that may pose inhalation, skin contact, or ingestion hazards. Therefore, comprehensive safety programs combine engineering controls, work practices, and personal protective equipment (PPE).

Engineering controls represent the most effective protection approach. Enclosed transfer systems eliminate or minimize worker contact with hazardous materials. Local exhaust ventilation captures vapors and dusts at their source. Automated batching systems reduce manual material handling. Consequently, modern rotogravure inks manufacturing equipment incorporates these protective features as standard rather than afterthoughts.

Safety interlocks and emergency systems prevent accidents and minimize consequences when problems occur. Interlocks prevent operators from opening charging ports while agitators run, avoiding entanglement hazards. Emergency stop buttons immediately halt all motion when activated. Pressure relief devices protect against overpressure conditions. Furthermore, proper machine guarding prevents contact with rotating shafts, belts, and couplings.

Personal protective equipment provides the last line of defense when engineering controls and work practices cannot eliminate all exposures. Appropriate PPE for ink production typically includes chemical-resistant gloves, safety glasses or face shields, and respiratory protection when handling dry pigments. However, PPE is less reliable than engineering controls because it depends on correct selection, proper fit, and consistent use.

Environmental Compliance and Sustainability

Beyond air emissions, ink production facilities must manage wastewater, solid waste, and energy consumption responsibly. Environmental permits often require monitoring and reporting of various parameters. Additionally, customer demands for sustainable manufacturing practices increasingly influence equipment selection and facility design.

Wastewater from ink production contains pigments, solvents, and other chemicals that require treatment before discharge. Many facilities install wastewater treatment systems or arrange for disposal through licensed waste management companies. Equipment cleaning generates the largest wastewater volumes, so efficient cleaning systems reduce both water consumption and wastewater generation.

Clean-in-place (CIP) systems automate equipment cleaning while minimizing solvent and water use. These systems circulate cleaning solvents through dispersers, mills, and piping to remove residual ink. Furthermore, CIP systems can recover and reuse cleaning solvents, reducing both costs and waste generation. Therefore, CIP capability is increasingly standard on larger rotogravure inks manufacturing equipment installations.

Energy efficiency contributes directly to environmental sustainability. Lower energy consumption reduces greenhouse gas emissions from electricity generation. As discussed earlier, variable frequency drives, proper insulation, and optimized processing sequences all reduce energy use. Therefore, energy-efficient equipment delivers both economic and environmental benefits throughout its operational life.

Common Production Problems & Equipment Solutions

Even well-designed ink production systems encounter recurring problems that affect quality, productivity, or costs. Fortunately, most common problems can be prevented or solved through proper equipment selection and operation. Understanding these typical challenges helps you specify rotogravure inks manufacturing equipment that delivers reliable, trouble-free performance.

Poor Color Strength and Print Density Issues

Problem: Finished ink shows weak color strength compared to standards, requiring higher pigment loading or multiple print passes to achieve desired appearance. This problem increases raw material costs and reduces printing press productivity.

Root causes: Insufficient dispersion leaves pigment particles in agglomerated clusters rather than individual particles. Poor grinding fails to achieve target particle size and surface area. Additionally, incompatible resin systems may not wet pigment surfaces effectively.

Equipment solutions: Improved pre-dispersion on high-speed dispersers breaks down initial agglomerates more thoroughly. Longer or more efficient grinding in bead mills reduces particles to target fineness. Using smaller grinding media (0.4-0.6mm instead of 1.0-1.5mm) often achieves finer particle sizes and better color development.

Furthermore, proper disperser blade design creates optimal shear and flow patterns for your specific formulations. Worn or incorrect blades reduce dispersion efficiency dramatically. Therefore, regular blade inspection and replacement maintains consistent performance. Additionally, adequate mixing time allows complete wetting—rushing dispersion to save time often creates problems downstream.

Foam Formation and Air Entrapment

Problem: Finished ink contains foam or trapped air bubbles that cause print defects, inconsistent viscosity readings, and filling accuracy problems. Foam persists even after standing for extended periods.

Root causes: Excessive agitation speed during let-down introduces air into the ink. Improper impeller selection creates vortexing that draws surface air into the liquid. Additionally, some surfactants and additives promote foam formation rather than breaking it.

Equipment solutions: Low-speed mixers or twin-shaft systems provide gentle blending during let-down without air entrainment. Proper impeller selection creates axial flow patterns rather than radial patterns that promote vortexing. Moreover, vacuum-capable mixing vessels allow air removal through degassing operations.

Blade design significantly affects air entrainment. Anchor or gate-style agitators move material efficiently at low speeds without creating air-entraining vortices. Conversely, high-speed dispersion blades are excellent for initial mixing but inappropriate for final let-down. Therefore, using the right agitator for each process stage prevents foam problems.

Sedimentation and Stability Problems

Problem: Pigments settle to the bottom of containers during storage, forming hard cakes that won’t re-disperse easily. This problem causes customer complaints, product returns, and waste of valuable materials.

Root causes: Wide particle size distribution includes large particles that settle quickly. Insufficient resin adsorption on pigment surfaces fails to provide steric stabilization. Additionally, incompatible pigment and resin combinations lead to flocculation over time.

Equipment solutions: Proper grinding in bead mills creates narrow particle size distributions with minimal oversized particles. Controlled particle size distribution improves stability dramatically. Furthermore, adequate dispersion time allows complete resin adsorption onto pigment surfaces, providing better stabilization.

Quality control during production catches stability problems before shipping. Simple shelf-life tests involve storing samples at elevated temperatures and checking for sedimentation after one week. Samples showing good stability under accelerated conditions typically perform well under normal storage. Therefore, in-process testing allows formulation adjustment before filling finished product.

Batch-to-Batch Viscosity Variation

Problem: Different batches of the same formulation show viscosity differences despite using identical raw materials and procedures. This variation frustrates customers and creates rework costs.

Root causes: Manual batching introduces weighing errors that affect final ratios. Temperature variations during mixing and grinding change resin dissolution and pigment dispersion. Additionally, variations in mixing time or agitation speed create inconsistent dispersion levels.

Equipment solutions: Automated batching systems eliminate manual weighing errors and ensure consistent raw material ratios. Temperature control systems maintain consistent processing temperatures in reactors and bead mills. Moreover, programmable controls ensure identical mixing times and speeds for every batch.

Process monitoring provides early warning of developing problems. Continuous viscosity measurement during grinding allows automatic endpoint detection. Temperature monitoring ensures consistent thermal profiles. Furthermore, data logging creates records that help troubleshoot problems and verify consistent operation. Therefore, instrumentation and controls are investments in quality, not just conveniences.

Equipment Wear and Maintenance Issues

Problem: Frequent equipment failures interrupt production and increase maintenance costs. Worn components affect product quality through contamination or inconsistent processing.

Root causes: Abrasive pigments or fillers accelerate wear on mill chambers, agitators, and seals. Inadequate maintenance allows small problems to escalate into major failures. Additionally, operating equipment beyond design specifications shortens component life.

Equipment solutions: Wear-resistant materials including hardened steel, tungsten carbide, or ceramic construction extend service life in abrasive applications. Proper equipment sizing ensures operation within design parameters rather than continuous maximum-load conditions. Furthermore, modular component design allows quick replacement of wear parts during scheduled maintenance.

Preventive maintenance programs minimize unexpected failures. Regular inspection identifies wear before components fail catastrophically. Scheduled replacement of seals, bearings, and other wear items during planned downtime costs far less than emergency repairs. Therefore, partnering with equipment suppliers like Z-MIXER TECH for maintenance support ensures long-term reliability and productivity.

Turnkey vs. Individual Equipment: What’s Best for Your Business?

When planning your rotogravure ink production facility, one fundamental decision is whether to purchase a complete turnkey system or buy individual machines separately. Each approach offers distinct advantages and challenges. Understanding these tradeoffs helps you select the strategy that best fits your business situation, budget, and technical capabilities.

Understanding Turnkey Production Systems

Turnkey systems are complete, integrated production lines supplied by a single manufacturer. The supplier designs, manufactures, installs, and commissions all equipment as a coordinated system. “Turnkey” means the system is ready to operate—you simply “turn the key” and start production.

A complete turnkey rotogravure inks manufacturing equipment system typically includes all major components: raw material storage and handling, high-speed dispersers, bead mills, let-down tanks, filtration systems, filling machines, piping and valves, electrical systems, control systems, and safety equipment.

Furthermore, turnkey projects include engineering services such as process design, equipment layout, utility requirements analysis, and integration planning. The supplier manages installation, startup, testing, and operator training. Additionally, comprehensive documentation including operating manuals, maintenance procedures, and spare parts lists comes standard with turnkey systems.

Advantages of Turnkey Systems

Single-source responsibility: One supplier is responsible for the entire system’s performance. If problems occur, you have a single point of contact rather than multiple vendors blaming each other. This accountability simplifies troubleshooting and warranty claims significantly.

Optimized integration: Equipment is designed to work together from the beginning. Pumps, piping, and controls are properly sized and matched. Consequently, turnkey systems avoid the bottlenecks and mismatches that plague installations assembled from multiple suppliers’ equipment.

Faster installation and startup: Factory testing verifies system performance before shipping. Installation follows proven procedures with detailed documentation. Therefore, turnkey systems typically reach stable production faster than assembled systems. This faster startup provides earlier return on investment.

Comprehensive support: Suppliers of turnkey systems typically offer complete service including preventive maintenance, spare parts supply, training programs, and process optimization assistance. This ongoing support helps you maximize production efficiency and equipment life.

Reduced engineering burden: The supplier handles technical decisions about equipment sizing, control strategies, safety systems, and regulatory compliance. This expertise is especially valuable if your team lacks experience designing ink production facilities. Consequently, turnkey systems reduce risk for first-time facility builders.

When to Choose Individual Equipment

Despite turnkey advantages, individual equipment purchases make sense in certain situations. Understanding when this approach works best helps you make informed decisions aligned with your specific circumstances.

Expanding existing facilities: If you’re adding capacity to an existing production line, purchasing individual machines often makes more sense than replacing entire systems. For example, adding a second bead mill to increase grinding capacity requires less investment and disruption than installing a complete new line.

Replacing specific components: When individual machines wear out or become obsolete, targeted replacement is more economical than complete system replacement. Modern equipment often integrates successfully with older systems through adapter interfaces and control system bridges.

Specialized equipment needs: Sometimes your formulations require specialized equipment from niche suppliers. For example, ultra-high-shear mills for difficult pigments or specialized filtration for contamination-sensitive applications. In these cases, you may purchase specialty equipment individually and integrate it yourself.

Budget constraints: Individual equipment purchases can be phased over time as capital becomes available. This approach allows staged investment rather than large upfront commitments. However, be cautious—phased purchasing often costs more overall than integrated turnkey systems due to duplicate engineering, installation mobilizations, and integration challenges.

In-house engineering capability: Companies with experienced process engineers and technical staff can successfully specify, purchase, and integrate individual equipment. This approach potentially saves costs by eliminating the turnkey supplier’s engineering markup. However, ensure your team truly has adequate expertise—integration mistakes often cost far more than expert assistance would have.

Z-MIXER TECH’s Turnkey Solution

Z-MIXER TECH specializes in complete turnkey rotogravure inks manufacturing equipment from 5,000L to 50,000L per batch capacity. Our turnkey systems integrate all process equipment, safety systems, and controls into fully functional production facilities. Moreover, we provide complete project management from initial design through successful production startup.

Our turnkey approach includes several phases. First, we work with your team to understand production requirements, formulation types, site constraints, and regulatory requirements. Next, our engineers design the complete system including equipment selection, facility layout, utility requirements, and safety systems. Then, equipment is manufactured, tested, and shipped to your facility.

Installation follows detailed procedures developed over hundreds of successful projects. Our technicians work with your contractors to ensure proper equipment placement, utility connections, and safety system integration. Subsequently, comprehensive testing verifies all equipment operates correctly before training begins.

Operator training ensures your team can run the system safely and efficiently. We provide classroom instruction on equipment operation, maintenance procedures, troubleshooting techniques, and quality control methods. Additionally, hands-on training during actual production runs builds confidence and competence.

Post-startup support continues throughout your equipment’s operational life. Z-MIXER TECH provides technical assistance, spare parts supply, preventive maintenance programs, and process optimization consulting. This long-term partnership helps you maximize return on your equipment investment for decades.

“We’ve installed both turnkey systems and individual machines over the years. The turnkey approach consistently delivers faster startup, fewer integration headaches, and better long-term support. Unless you have very specific reasons to buy individual equipment, turnkey is usually the smarter investment.” — Michael Tan, Operations Director, Southeast Asia Inks Manufacturing

---

FAQ: Your Rotogravure Ink Equipment Questions Answered

Here are the most frequently asked questions about rotogravure inks manufacturing equipment. These answers provide quick, practical information to help you understand equipment options, capabilities, and selection criteria.

What equipment is needed to manufacture rotogravure inks?

A complete gravure ink production line typically needs several key components working together. First, raw material storage tanks hold solvents, resins, and liquid additives safely. Second, high-speed dispersers create initial pigment slurry through intense mixing action. Third, bead mills or sand mills grind pigments to final particle size for color strength and gloss.

Additionally, mixing reactors allow resin dissolution and temperature-controlled formulation development. Filtration systems remove oversized particles and contaminants before packaging. Finally, filling machines accurately package finished ink into cans, drums, or bulk containers. Supporting equipment including pumps, piping, platforms, and control systems integrates everything into efficient production systems.

Many suppliers offer turnkey systems that include all necessary equipment as complete, integrated packages. Z-MIXER TECH provides turnkey rotogravure inks manufacturing equipment from 5,000L to 50,000L batch capacity with full safety certifications.

How does a gravure ink production line work?

Gravure ink production follows a logical sequence of four main stages. First, raw materials including pigments, resins, solvents, and additives are weighed and loaded into the premix system. Accurate batching ensures consistent quality batch after batch.

Second, pre-dispersion on high-speed dispersers creates homogeneous pigment slurry. This step breaks down pigment clusters and wets each particle with resin and solvent. Good pre-dispersion dramatically improves downstream grinding efficiency.

Third, fine grinding in bead mills reduces particles to final size specifications. The mill circulates ink through grinding chambers filled with ceramic or steel beads until target fineness is achieved. This grinding creates the color strength and gloss gravure printing requires.

Finally, let-down blends in additional solvents and additives to achieve final viscosity and performance. The finished ink passes through filters to remove any contaminants, then moves to filling machines for packaging. Throughout this process, pumps and control systems move material between stages automatically in modern production lines.

What is the role of a bead mill in rotogravure ink manufacturing?

The bead mill performs the most critical quality-determining step in gravure ink production. This equipment reduces pigment particles from the 10-50 micron range after dispersion down to 1-5 microns or even smaller in the finished ink.

Bead mills use grinding chambers filled approximately 70-90% with small ceramic, glass, or steel beads. An internal agitator accelerates these beads to high velocities. As beads collide with tremendous force, pigment particles trapped between them are crushed and sheared to progressively smaller sizes.

This particle size reduction directly determines final ink quality. Smaller particles provide greater color strength, allowing printers to use less ink for equivalent print density. Additionally, fine particles create smoother ink films with better gloss and transparency. Furthermore, narrow particle size distributions improve ink stability and prevent sedimentation during storage.

Modern bead mills include advanced features such as variable-speed drives for process optimization, cooling systems to prevent heat damage, and sophisticated bead separation screens that retain grinding media while allowing processed ink to flow freely.

What capacities are common for gravure ink equipment?

Gravure ink production equipment spans a wide capacity range to suit different business scales. Small pilot or laboratory systems typically handle 100-500 liter batches. These compact systems work well for product development, color matching, and producing specialty inks in small quantities.

Medium-scale production equipment handles 1,000-5,000 liter batches. This capacity range suits regional ink manufacturers, growing businesses, and facilities producing diverse product portfolios. Medium-scale systems balance production efficiency with flexibility for frequent formulation changes.

Large industrial systems process 5,000-50,000 liter batches for high-volume production. These turnkey plants serve national and international markets with consistent, large-quantity orders. Z-MIXER TECH specializes in complete turnkey systems across this entire range, with particular expertise in large-scale installations from 5,000L to 50,000L per batch.

Total daily production depends on batch size, number of batches, and processing time. For example, a 5,000L system running three batches per day produces approximately 15,000 liters or 12-15 tons daily, depending on ink density. Therefore, equipment capacity should match your current needs plus 30-50% growth margin.

Are rotogravure ink plants compatible with water-based inks?

Yes, rotogravure inks manufacturing equipment can definitely handle water-based formulations. However, equipment must be specified appropriately because water-based inks have different properties than traditional solvent-based formulations.

Water-based systems require corrosion-resistant materials, particularly stainless steel wetted parts, because water promotes corrosion more than organic solvents. Additionally, water-based inks often have different rheology (flow properties) requiring adjustments to agitator design and mixing power.

The basic production sequence remains identical: batching, pre-dispersion on high-speed dispersers, fine grinding in bead mills, let-down, filtration, and filling. However, processing parameters such as mixing time, grinding cycles, and temperature control may differ from solvent-based formulations.

Many modern facilities specify equipment capable of handling both solvent-based and water-based inks. This flexibility allows product portfolio evolution as market demand and environmental regulations change. Z-MIXER TECH designs equipment with appropriate material selection and safety features to accommodate diverse ink chemistries throughout their operational life.

What certifications should rotogravure ink manufacturing equipment have?

Safety and quality certifications protect your investment and ensure regulatory compliance. Essential certifications vary by region and application, but several standards apply almost universally to professional rotogravure inks manufacturing equipment.

CE marking is required for equipment sold in European Union countries. This certification demonstrates compliance with EU directives covering safety, health, and environmental protection. CE marking involves rigorous documentation and often third-party testing.

ISO 9001 certification indicates the manufacturer maintains quality management systems ensuring consistent manufacturing quality and comprehensive documentation. This certification helps ensure equipment reliability and supportability.

ATEX certification is essential for equipment handling flammable solvents in European installations. ATEX ensures electrical equipment will not create ignition sources in explosive atmospheres. Similarly, IECEx provides internationally recognized explosion protection certification increasingly accepted worldwide.

North American installations typically require UL or CSA approval demonstrating compliance with US and Canadian safety standards. Additionally, verify equipment includes documented safety features such as emergency stops, interlocks, and proper guarding. Z-MIXER TECH provides equipment with CE, ISO9001, ATEX, and IECEx certifications as standard, ensuring worldwide regulatory compliance.

How much does rotogravure ink manufacturing equipment cost?

Equipment costs vary dramatically based on capacity, automation level, and included features. Small pilot systems for 100-500L batches typically range from $30,000-$100,000 USD for basic equipment. These systems suit R&D and small-scale specialty production.

Medium-scale production lines for 1,000-5,000L batches generally cost $150,000-$500,000 USD depending on automation and integration level. These systems provide good balance between capability and investment for growing businesses.

Large turnkey plants for 5,000-50,000L batches represent significant investments from $500,000 to several million USD. However, these sophisticated systems deliver maximum productivity, consistency, and automation for high-volume production.

Beyond initial equipment costs, consider installation expenses, utility connections, facility modifications, spare parts inventory, and training. Total project costs typically run 20-40% above equipment purchase price. Therefore, request complete turnkey quotations including all costs for accurate budget planning. Contact Z-MIXER TECH for detailed quotations tailored to your specific production requirements.

How long does it take to install a gravure ink production line?

Installation timelines depend on system complexity, site readiness, and equipment availability. Small pilot systems can often be installed and commissioned within 4-8 weeks after equipment arrival. These compact systems require minimal facility preparation and integration.

Medium-scale production lines typically require 8-16 weeks from equipment arrival to stable production. This timeline includes rigging and positioning equipment, connecting utilities, installing electrical and control systems, testing, and operator training.

Large turnkey plants require 16-32 weeks or longer for complete installation and commissioning. Complex systems need extensive facility preparation, multi-trade coordination, sophisticated control system programming, and thorough testing before production starts. However, proper planning and experienced project management minimize delays and ensure successful startups.

Lead time for equipment manufacturing adds to total project duration. Custom-designed systems typically require 12-24 weeks from order to shipment depending on size and complexity. Therefore, plan total project duration from order to stable production at 6-12 months for turnkey installations. Early engagement with suppliers like Z-MIXER TECH helps develop realistic schedules and identifies potential delays before they impact your production deadlines.

What maintenance do rotogravure ink production systems require?

Regular maintenance keeps rotogravure inks manufacturing equipment running reliably for decades. Maintenance requirements vary by equipment type, but several activities apply to most production systems.

Daily maintenance includes visual inspections for leaks, unusual noises, or vibration. Operators should verify all safety systems function properly before starting production. Additionally, cleaning equipment between batches prevents cross-contamination and maintains product quality.

Weekly or monthly maintenance covers lubrication of bearings, gearboxes, and chains. Check and tighten electrical connections. Inspect seals, gaskets, and packing for wear or leakage. Furthermore, verify control systems and sensors operate correctly through functional tests.

Annual or bi-annual maintenance includes major inspections and component replacement. Bead mill screens, agitator discs, and shaft seals wear over time and require periodic replacement. High-speed disperser blades wear and need replacement or refurbishment. Additionally, motor bearings, pump seals, and filter housings benefit from scheduled replacement.

Comprehensive maintenance programs minimize unexpected downtime and extend equipment life significantly. Z-MIXER TECH provides detailed maintenance schedules and can supply original spare parts and technical support throughout your equipment’s operational life.

Next Steps: Planning Your Rotogravure Ink Production Line

Now that you understand rotogravure inks manufacturing equipment options, specifications, and selection criteria, you’re ready to plan your specific installation. Successful projects follow systematic planning processes that ensure equipment meets your technical and business requirements. Use this step-by-step checklist to organize your project and make informed decisions.

Define Your Production Requirements

Start by documenting exactly what you need to produce. Create a detailed list of all ink types including colors, formulation families (solvent-based, water-based, specialty), and typical batch sizes. Additionally, estimate annual production volumes for each product category based on current sales and realistic growth projections.

Analyze your customer base and order patterns. Do you serve many customers with small, frequent orders, or few customers with large, regular orders? This analysis determines whether you need maximum flexibility for frequent changeovers or maximum efficiency for long production runs. Consequently, equipment configuration depends heavily on your specific market position and customer requirements.

Consider future product development plans. Will you be adding water-based inks to a solvent-based portfolio? Expanding into specialty effects like metallics or pearlescents? Growing into new geographic markets? Planning equipment with future capabilities in mind prevents costly retrofits or premature replacement.

Assess Your Site and Utilities

Evaluate your facility to identify constraints and requirements before selecting equipment. Measure available floor space including ceiling height for equipment installation. Check floor loading capacity to ensure it can support heavy equipment filled with ink. Additionally, verify door and corridor dimensions allow moving large equipment into the production area.

Document available utilities including electrical power capacity, voltage, and phase configuration. Determine water supply capacity and temperature for cooling systems. Verify compressed air availability if pneumatic controls or transfer systems are planned. Furthermore, identify ventilation and exhaust capabilities for managing solvent vapors safely.

Consider site-specific challenges such as extreme temperatures, high humidity, or limited access for maintenance. These factors may require special equipment specifications or facility modifications. Therefore, early site assessment prevents expensive surprises during installation.

Develop Your Budget

Create a comprehensive budget covering all project costs, not just equipment purchase prices. Include equipment costs for dispersers, bead mills, filling machines, and all supporting systems. Add installation labor, utility connections, and facility modifications.

Additionally, budget for startup costs including initial raw material inventory, startup technical assistance, operator training, and production trials. Many companies underestimate these soft costs, creating budget overruns. Plan for total project costs 120-140% of equipment purchase price for realistic budgeting.

Consider financing options and return on investment timeframes. Equipment suppliers often provide financing assistance or can recommend specialized lenders. Calculate expected payback period based on production cost savings, increased capacity, or new market opportunities. This financial analysis helps justify investment to management or investors.

Request Detailed Quotations

Contact multiple qualified suppliers including Z-MIXER TECH with detailed requests for quotations (RFQs). Provide comprehensive information about your requirements including production volumes, product types, batch sizes, site constraints, utility availability, and budget parameters. The more information you provide, the more accurate and useful quotations will be.

Request itemized quotations showing costs for each major equipment component, installation services, training, spare parts packages, and ongoing support. Ask for detailed equipment specifications, performance guarantees, delivery schedules, and warranty terms. Additionally, request references from similar installations you can visit or contact.

Compare quotations based on total value, not just initial price. Consider equipment quality, supplier experience, service capabilities, and long-term support. The cheapest option often costs more over the equipment’s 20+ year operational life due to reliability problems, higher maintenance costs, and poor support.

Visit Reference Installations

Before making final equipment decisions, visit existing installations similar to what you’re planning. Observe equipment operation, talk with operators and maintenance staff, and ask about their experience with the supplier. These visits provide invaluable insights you can’t get from brochures or sales presentations.

Questions to ask during site visits include: Does the equipment meet production targets reliably? How is product quality and consistency? What maintenance challenges have you encountered? How responsive is supplier technical support? Would you purchase from this supplier again? Honest answers from current users help you select suppliers who deliver long-term value.

Partner with Experienced Suppliers

Select equipment suppliers based on technical capability, manufacturing quality, project management experience, and long-term support commitment. Z-MIXER TECH brings decades of experience designing and manufacturing rotogravure inks manufacturing equipment for customers worldwide. Our systems range from 5,000L to 50,000L batch capacity with complete CE, ISO9001, ATEX, and IECEx certifications.

We provide complete turnkey project management including process design, equipment manufacturing, installation supervision, commissioning, training, and ongoing technical support. Our experienced team guides you through every project phase, ensuring your facility meets production targets safely and efficiently.

Moreover, we maintain long-term partnerships with customers, providing spare parts, technical assistance, process optimization consulting, and expansion planning support throughout your equipment’s operational life. This commitment to customer success distinguishes Z-MIXER TECH from suppliers who disappear after equipment installation.

Conclusion: Invest in Quality Rotogravure Ink Manufacturing Equipment Today

The rotogravure printing inks market offers solid growth opportunities driven by expanding flexible packaging demand, especially in Asia-Pacific markets. With the global market projected to reach USD 6-7.3 billion by 2030, now is an excellent time to invest in production capacity or upgrade existing facilities.

Selecting the right rotogravure inks manufacturing equipment requires careful consideration of multiple factors. Production capacity must balance current needs with realistic growth projections. Equipment quality directly impacts product consistency, operating costs, and customer satisfaction. Safety certifications including ATEX and IECEx protect your workers and facility. Furthermore, energy efficiency reduces operating costs and environmental impact throughout equipment life.

Whether you choose pilot-scale systems for R&D, medium-scale production lines for regional markets, or large turnkey plants for high-volume manufacturing, partner with experienced suppliers who deliver proven technology and long-term support. Quality equipment from reputable manufacturers like Z-MIXER TECH provides reliable performance for 20+ years with proper maintenance.

Remember that your production equipment represents the foundation of your business. High-speed dispersers create the initial dispersion quality that determines downstream efficiency. Bead mills deliver the particle size and color strength your customers demand. Filling machines ensure accurate packaging that builds customer confidence. Therefore, invest in quality equipment that supports your business success for decades.

Take Action: Start Your Project Today

Don’t let another production season pass with inadequate capacity or outdated equipment. The time to act is now. Follow these steps to begin your rotogravure ink production line project:

1. Document your specific requirements including production volumes, product types, batch sizes, and growth projections. This information forms the foundation for accurate equipment recommendations.

2. Contact Z-MIXER TECH for expert consultation and detailed quotations tailored to your needs. Our experienced team will help you select equipment configurations that optimize quality, productivity, and return on investment. We specialize in complete turnkey systems from 5,000L to 50,000L per batch with full safety certifications.

3. Visit our reference installations to see our equipment in operation and talk with satisfied customers. We’re proud of our global installation base and happy to arrange site visits that demonstrate our technology and support capabilities.

4. Request comprehensive project proposals covering equipment specifications, installation timelines, training programs, and ongoing support services. Our turnkey approach manages every project phase from initial design through successful production startup.

5. Make your investment decision based on total value, not just initial cost. Quality equipment, expert engineering, reliable installation, and long-term support deliver far greater value than the cheapest option.

The rotogravure ink market is growing. Packaging demand continues expanding. Your competitors are investing in modern production technology. The question isn’t whether to upgrade your capabilities—it’s whether you’ll lead the market or struggle to catch up.

Contact Z-MIXER TECH today to discuss your rotogravure inks manufacturing equipment needs. Our team is ready to help you design, build, and operate production facilities that deliver consistent quality, maximum efficiency, and sustainable profitability for decades to come. Let’s turn your production goals into reality with proven equipment and expert support.

Ready to Get Started?

Visit Z-MIXER.com to explore our complete range of rotogravure ink production equipment, or contact our technical team directly for personalized consultation. We’re here to help you succeed with quality equipment, expert engineering, and committed long-term support.

---

External Resources and Further Reading

For additional information about rotogravure printing inks, market trends, and manufacturing technologies, these authoritative industry resources provide valuable insights:

• Market Research Reports: Comprehensive market analysis and growth projections for rotogravure printing inks can be found at industry research firms such as
  Mordor Intelligence, which provides detailed regional breakdowns and technology trend analysis for the global rotogravure inks market through 2030.
• Technical Information: For deeper understanding of gravure printing technology and ink formulation principles, resources from the
  European Rotogravure Association (ERA) offer detailed guides covering substrate compatibility, printing press operation, and quality control methods.
• Environmental Regulations: Information about VOC regulations and emission standards is available through the
  U.S. EPA (Printing & Publishing Standards), helping you understand regulatory requirements for ink manufacturing facilities.
• Safety Standards: Detailed information about explosion protection can be found at the
  Official IECEx System and
  ATEX Directive portals, providing guidance for designing safe solvent-based ink production facilities.
• Industry News: Stay current with packaging industry trends through trade publications like
  Flexible Packaging Magazine and
  Ink World Magazine, covering new ink technologies and market developments.
